Compact crawler mobility, a fuel-efficient 78 kW Yuchai engine, and dual-motor rotary drive for stable DTH drilling — a factory-direct split-type rig for small mines, quarry blasting and infrastructure projects.
━━━━━━━━
MAX DRILLING DEPTH: 30 m | HOLE DIAMETER: 90–115 mm | ENGINE: 78 kW Yuchai
MOBILITY: Crawler Track | OPERATING WEIGHT: 4.64 T | FIELD MODE: Air / DTH
The MZ710 split type DTH drilling rig is a compact and cost-effective drilling machine designed for small-to-medium mining, quarrying, and rock blasting operations. It features a lightweight structure, simple operation, and stable performance, making it an ideal entry-level solution for customers seeking high value at a lower investment cost.
The machine adopts a multi-purpose integrated design concept, offering easy operation, stable quality, and strong adaptability across different working conditions. Its user-friendly control platform improves operational convenience and reduces operator training time.
With excellent mobility, the MZ710 can easily handle slope conditions and is capable of towing external air compressors, making it highly flexible for various job sites.

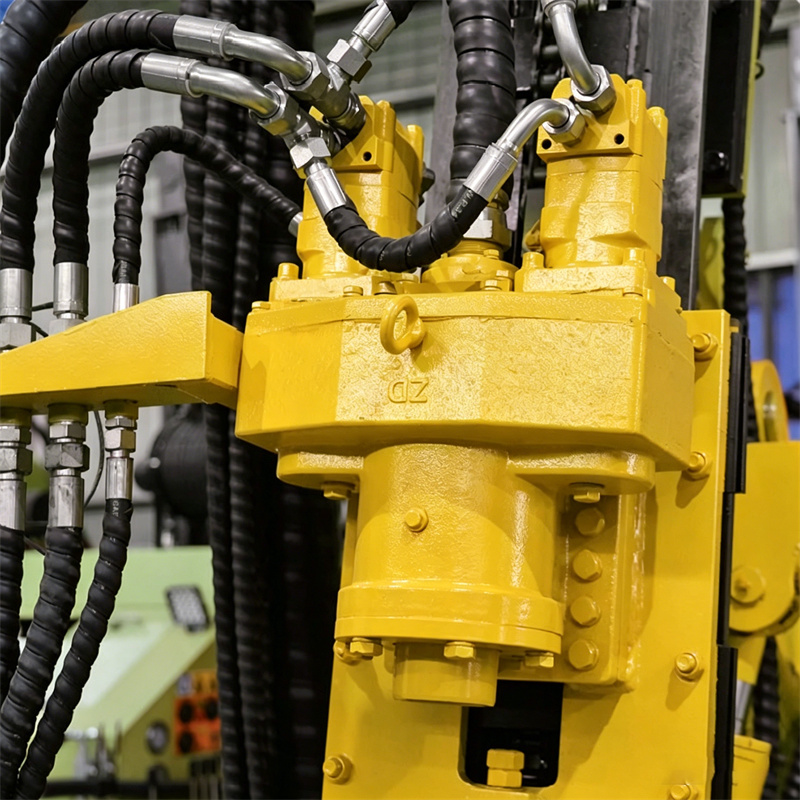

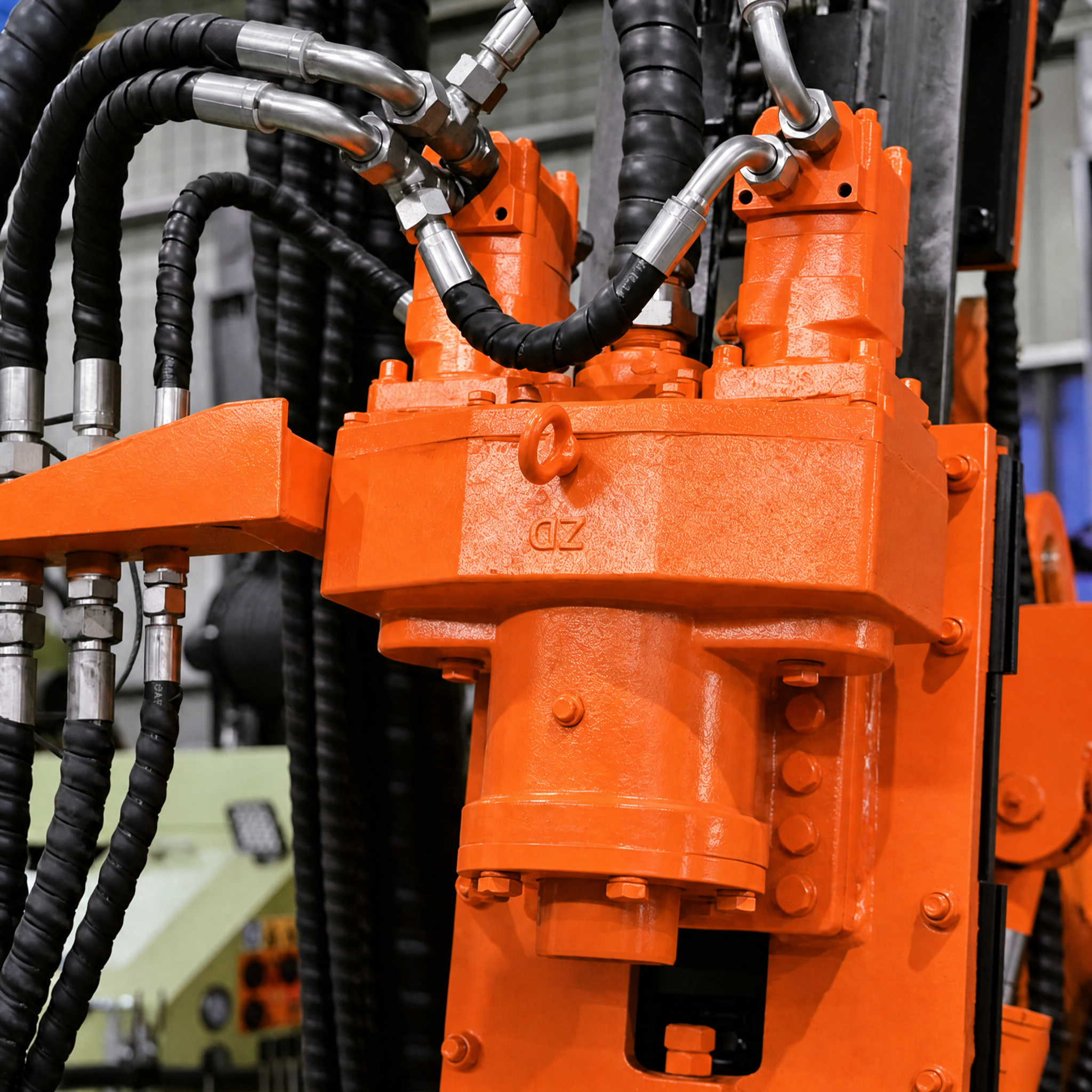

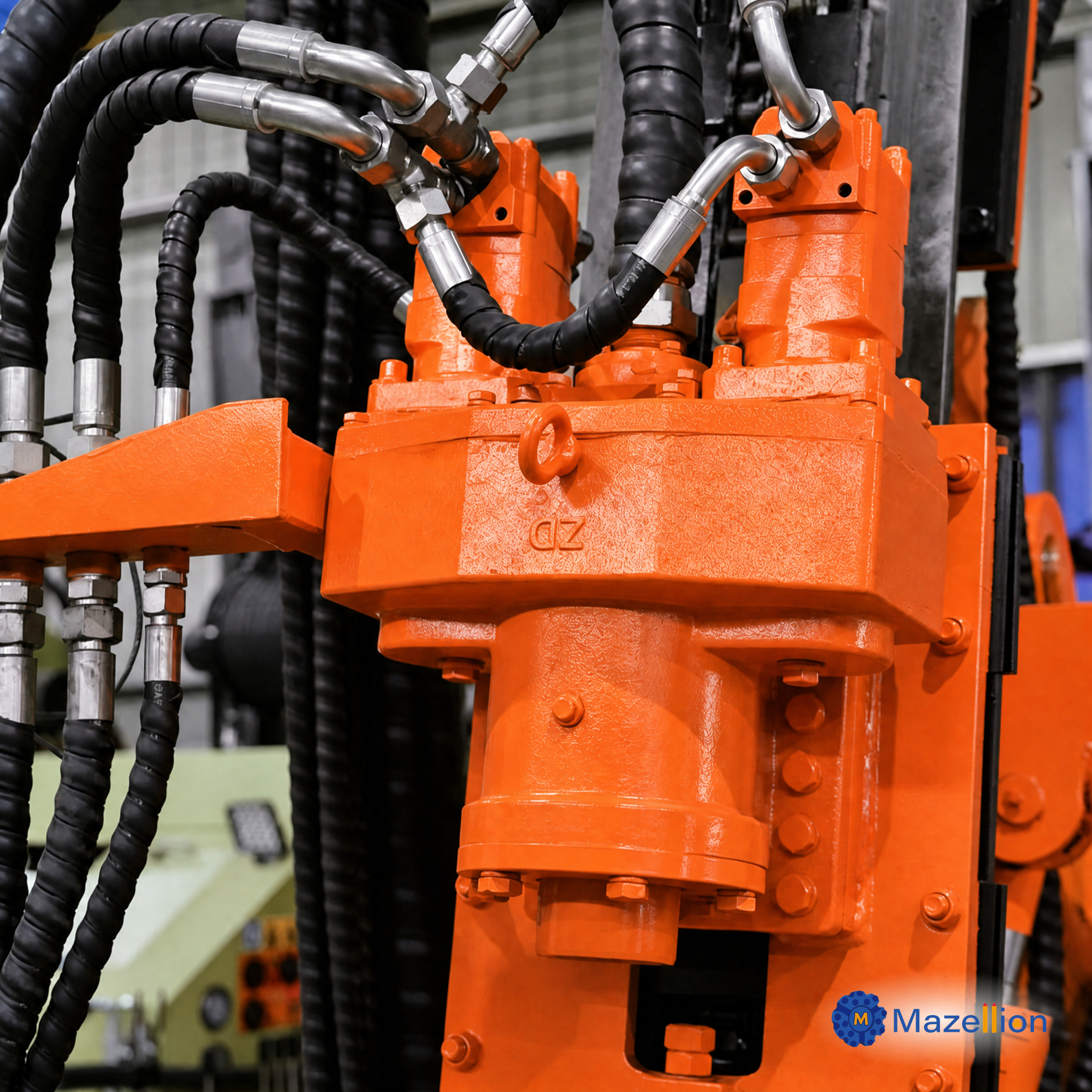

It is equipped with a dual-motor rotation system, which increases both torque and rotation speed, allowing the rig to maintain stable drilling performance in different rock formations and effectively reduce drill jamming risks.
Powered by a Yuchai YCD4T22T diesel engine (Yuchai), the MZ710 delivers reliable power output with low fuel consumption, making it a highly economical choice for daily drilling operations.
With its compact size and lightweight design, the MZ710 is especially suitable for contractors who prioritize low investment, easy transport, and practical drilling performance.
Quzhou Mazellion Heavy Industry Technology Co., Ltd. is a professional manufacturer of diesel screw air compressors and mining drilling equipment, serving global mining, quarry, water well drilling, and construction projects. We provide factory-direct supply, stable quality, and full OEM customization to help customers win local markets with better cost performance and reliability.
To start cooperation: send your inquiry → get a tailored technical solution & quotation → confirm order → production & testing → fast shipment → long-term spare parts & technical support. We respond quickly and support you throughout the whole project.
| Model of drilling rig | MZ710 dth drilling rig |
| Supporting power | Yuchai YCD4T22T |
| Rated power | 78kW |
| Hole range | Ø90~115mm |
| Drilling depth | 30m |
| Drill pipe | Ø64mm×3000m |
| DTH hammer | 3”/4” |
| Working pressure | 1.0~2.4MPa |
| Air consumption | 4.5~15M³/min |
| Rotary torque(Max.) | 2400N.M |
| Rotary speed | 0~150RPm |
| Feed stroke | 3340mm |
| Feed extension | 900mm |
| Lifting force | 25kn |
| Method of feed | Oil cylinder |
| Swing angle of skid | L3°R91°Total94° |
| Pitch angle of skid | Dn154°Up62°Total216° |
| Pitch angle of boom | Dn27°Up59°Total86° |
| Swing angle of boom | L52°R42°total94° |
| Walking speed | 0~2km/h |
| Gradeability max. | 35° |
| Ground clearance | 600mm |
| Weight | 4636kg |
| Outer dimensions(L×W×H) | 6200×2050×2150mm |
| Fuel tank capacity | 70L |
| Colleting Method | No |
1. Small Open-Pit Mining Projects
Suitable for small-scale mining operations such as limestone, coal, and surface metal ore extraction with moderate drilling requirements.
2. Quarry Blasting Operations
Widely used for quarry drilling and blast hole preparation, offering stable performance and efficient rock fragmentation.
3. Infrastructure Construction Projects
Applicable for highway, railway, and foundation drilling projects requiring compact and mobile drilling equipment.
4. Slope and Mountain Terrain Operations
Strong mobility and climbing capability make it suitable for uneven ground and slope drilling environments.
5. Cost-Sensitive Drilling Projects
Ideal for contractors seeking a low investment entry solution with reliable drilling performance and simple operation.
1. Lightweight & Cost-Effective Design
The compact structure reduces overall machine weight and investment cost, making MZ710 an ideal entry-level drilling solution.

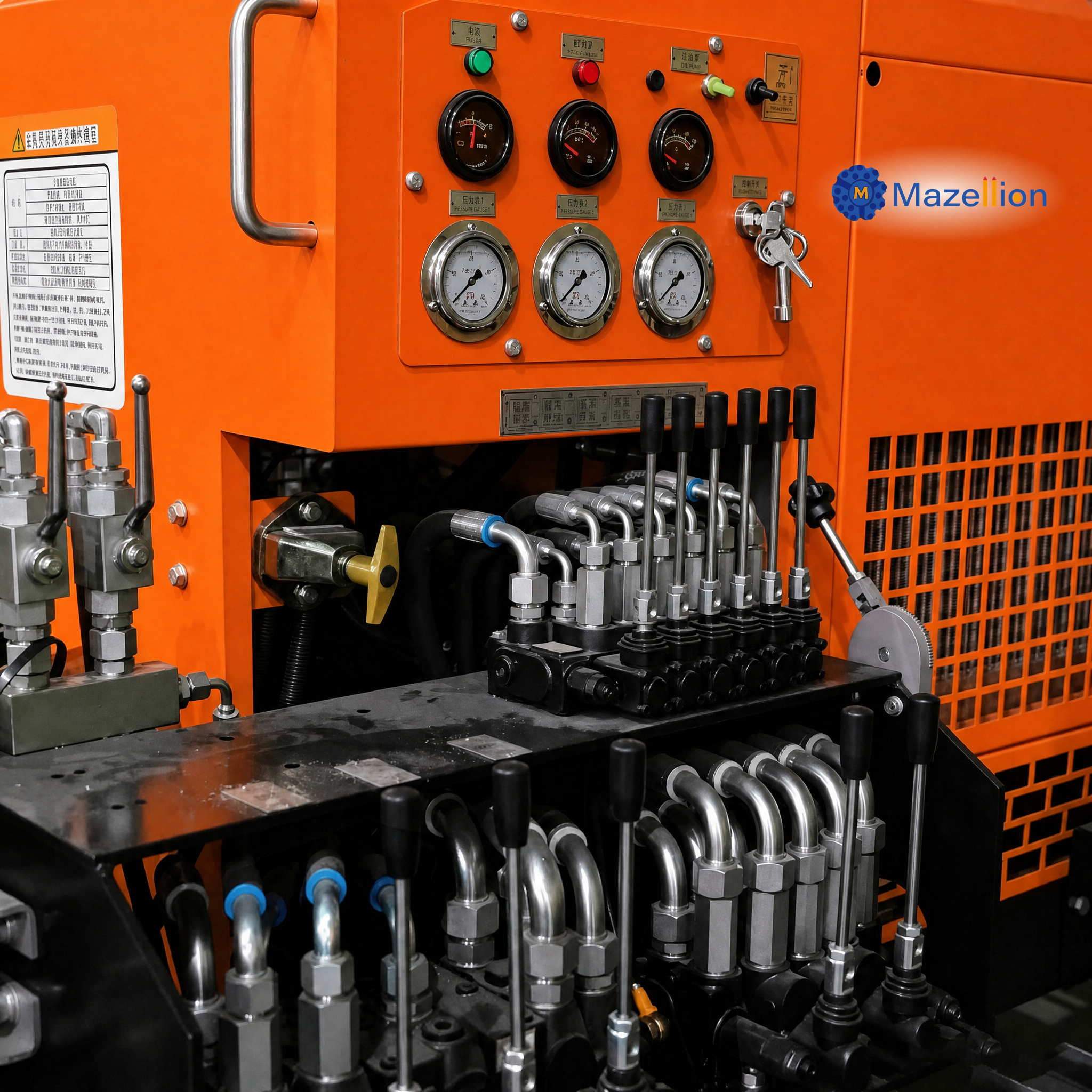

2. Simple Operation & User-Friendly Control

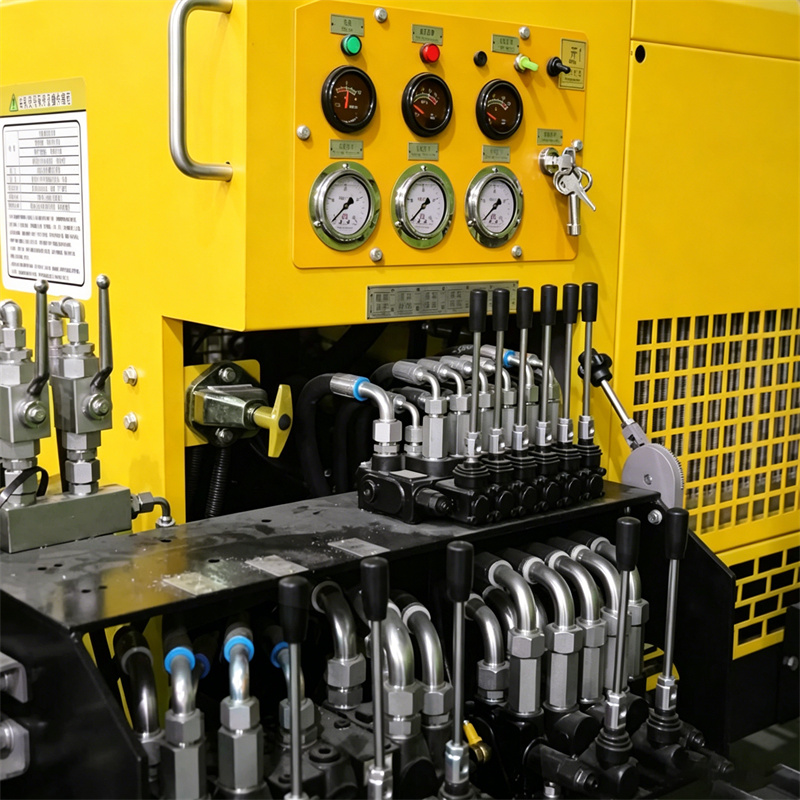

Integrated operating platform design ensures easy control, improving efficiency and reducing operator training requirements.
3. Strong Mobility & Terrain Adaptability
Excellent mobility allows the machine to operate on slopes and complex terrain while towing external air compressors efficiently.
4. Dual-Motor High Torque System
Equipped with a dual-motor rotation system, the MZ710 provides increased torque and speed, ensuring stable drilling performance and reducing drill jamming risks.
5. Stable Power with Low Fuel Consumption
Powered by a Yuchai engine, the machine ensures stable output with efficient fuel usage, improving long-term operating economy.
Q1: Does MZ710 include a built-in air compressor?
No. MZ710 is a split type DTH drilling rig and requires an external air compressor system.
Q2: What is the drilling range of MZ710?
The MZ710 supports Ø90–115mm hole diameter drilling, suitable for small-to-medium mining and blasting projects.
Q3: Can the engine brand be customized?
Yes. Standard configuration uses a Yuchai engine (Yuchai). Other brands such as Cummins or Weichai can be customized upon request.
Q4: What is the shipping method?
The machine is usually shipped in container (CKD or semi-assembled form). We provide full export packing, reinforcement, and documentation.
Q5: What industries is MZ710 suitable for?
It is widely used in mining, quarrying, infrastructure construction, and slope drilling projects, especially for cost-sensitive operations.
Q6: What size DTH hammer is MZ710 compatible with?
The MZ710 is suitable for 3-inch and 4-inch DTH hammers, making it flexible for different drilling requirements in small-to-medium mining and quarrying projects.
