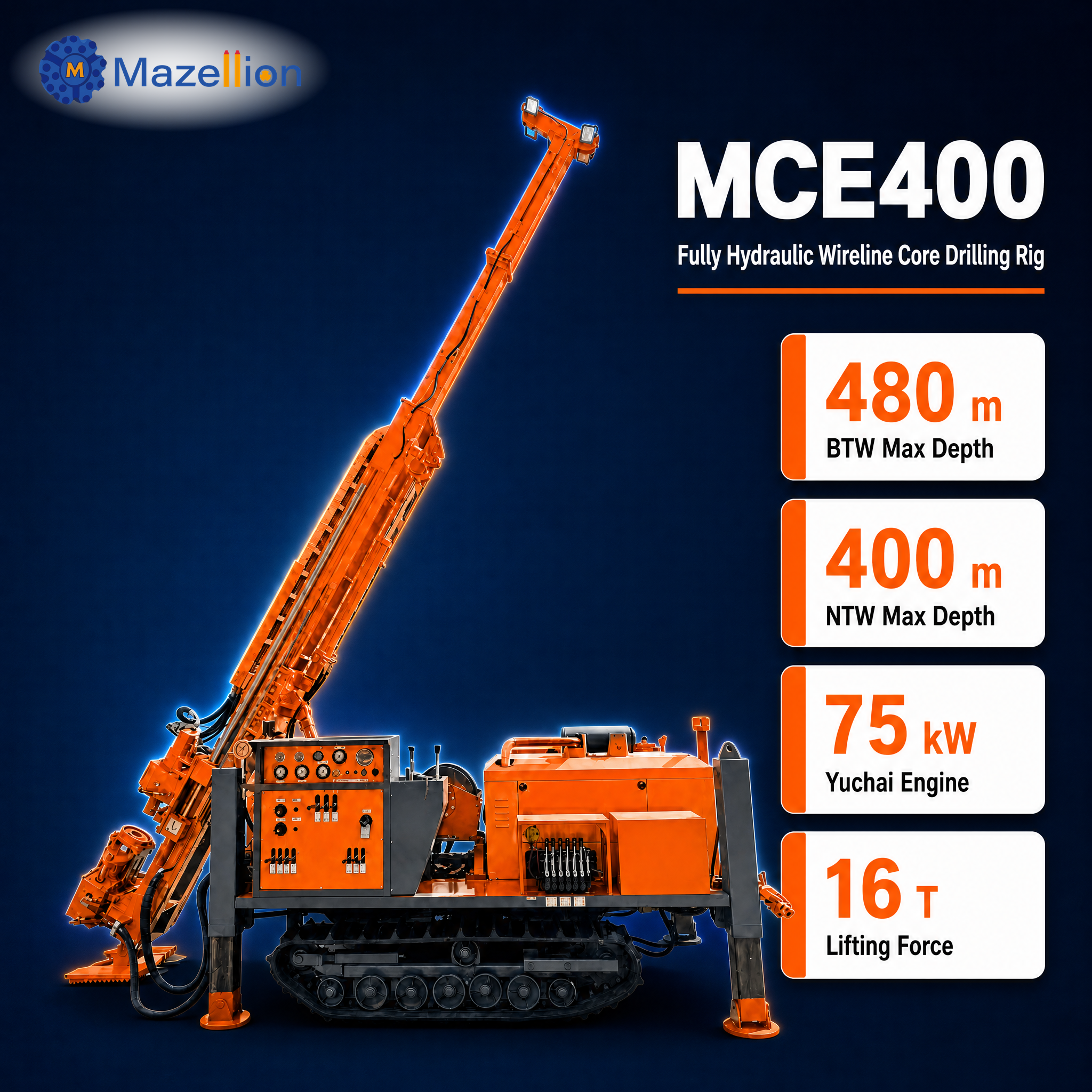

MCE400 Fully Hydraulic Wireline Core Exploration Drilling Rig – Compact, Agile & High-Speed Coring for Mining Exploration 400M Depth

The MCE400 Fully Hydraulic Wireline Core Exploration Drilling Rig is a compact, agile, and high-performance coring solution engineered for mining exploration and geotechnical drilling programs where speed, maneuverability, and efficiency are paramount. Its small footprint and lightweight design (5.3–5.8T) enable operation in tight, confined sites while delivering rapid penetration and quick core retrieval – significantly compressing project timelines and reducing overall exploration costs.

The fully hydraulic system provides smooth, responsive control across all functions, while the integrated wireline coring capability – featuring 500m rope capacity, 15kN lifting force, and 110m/min hoisting speed – enables exceptionally fast core retrieval without tripping the entire drill string, maximizing productivity and minimizing downtime. Designed for straightforward operation, the MCE400 minimizes training requirements while maintaining consistent, high-speed drilling performance even in remote locations.

Available in two track configurations – rubber track (FDX-400) for minimal ground disturbance and sensitive site operations, or steel track (FDG-400) for superior durability in rugged, off-road terrain – the MCE400 delivers exceptional versatility across varied exploration environments. With 480m BTW, 400m NTW, 200m HTW capability, 16T lifting force, 8T propulsion force, and 45–90° drilling angle adjustment, the MCE400 handles a wide range of exploration requirements while delivering the speed, agility, and economic efficiency needed to keep exploration programs on schedule and within budget.

1. Mining Exploration

Widely used for core drilling in mining exploration programs, where the compact size, high speed, and quick core retrieval enable rapid target evaluation and accelerated project timelines.

2. Geotechnical Investigation

Employed in geotechnical site investigations for infrastructure and construction projects, providing accurate subsurface data with minimal site disturbance and rapid mobilization.

3. Confined-Site & Underground Drilling

The small footprint and flexible track options enable operation in tight urban sites, underground mine workings, and other confined locations where access is limited.

4. Remote & Rugged Terrain

Available steel track option provides superior durability in rugged, off-road terrain, while rubber track option minimizes ground disturbance in sensitive environments.

5. Hydrogeological & Environmental Drilling

Applied in monitoring well installation and environmental investigations where quick, clean drilling with minimal surface impact is required.

1. Compact, Agile Design for Maximum Flexibility

The small footprint and lightweight construction (5.3–5.8T, 5400×1800×2300mm transport dimensions) enable rapid deployment and operation in tight, confined sites where larger rigs cannot access – maximizing exploration coverage across varied terrain.

2. High-Speed Drilling & Quick Core Retrieval

The fully hydraulic system delivers rapid penetration, while the 500m wireline rope capacity, 15kN lifting force, and 110m/min hoisting speed enable exceptionally fast core retrieval without tripping the drill string – significantly compressing project timelines.

3. Powerful 75kW Yuchai Engine

Powered by a reliable 75kW Yuchai engine, the MCE400 delivers consistent, dependable power for high-speed exploration drilling, ensuring productive performance even in remote locations.

4. Two Track Options for Terrain Flexibility

Choose FDX-400 with rubber tracks for minimal ground disturbance and sensitive site operations, or FDG-400 with steel tracks for superior durability and traction in rugged, off-road terrain – tailoring the rig to your specific environment.

5. Extended 400m NTW Coring Capability

With 480m BTW, 400m NTW, and 200m HTW capability, the MCE400 handles a wide range of exploration requirements, from shallow geotechnical investigation to deeper mineral exploration programs.

6. High Capacity with 16T Lifting Force

The 16T lifting force and 8T propulsion force provide ample capacity for deep-hole operations, ensuring reliable pipe handling and consistent drilling performance.

7. Wide Drilling Angle Range

The 45–90° drilling angle adjustment provides exceptional versatility for varied exploration requirements, enabling vertical, angled, and horizontal holes for targeted subsurface investigation.

8. Economical & Cost-Effective

By maximizing drilling speed, minimizing cycle times, and reducing mobilization requirements, the MCE400 delivers exceptional economic efficiency – enabling exploration programs to achieve more with less.

9. Straightforward Operation

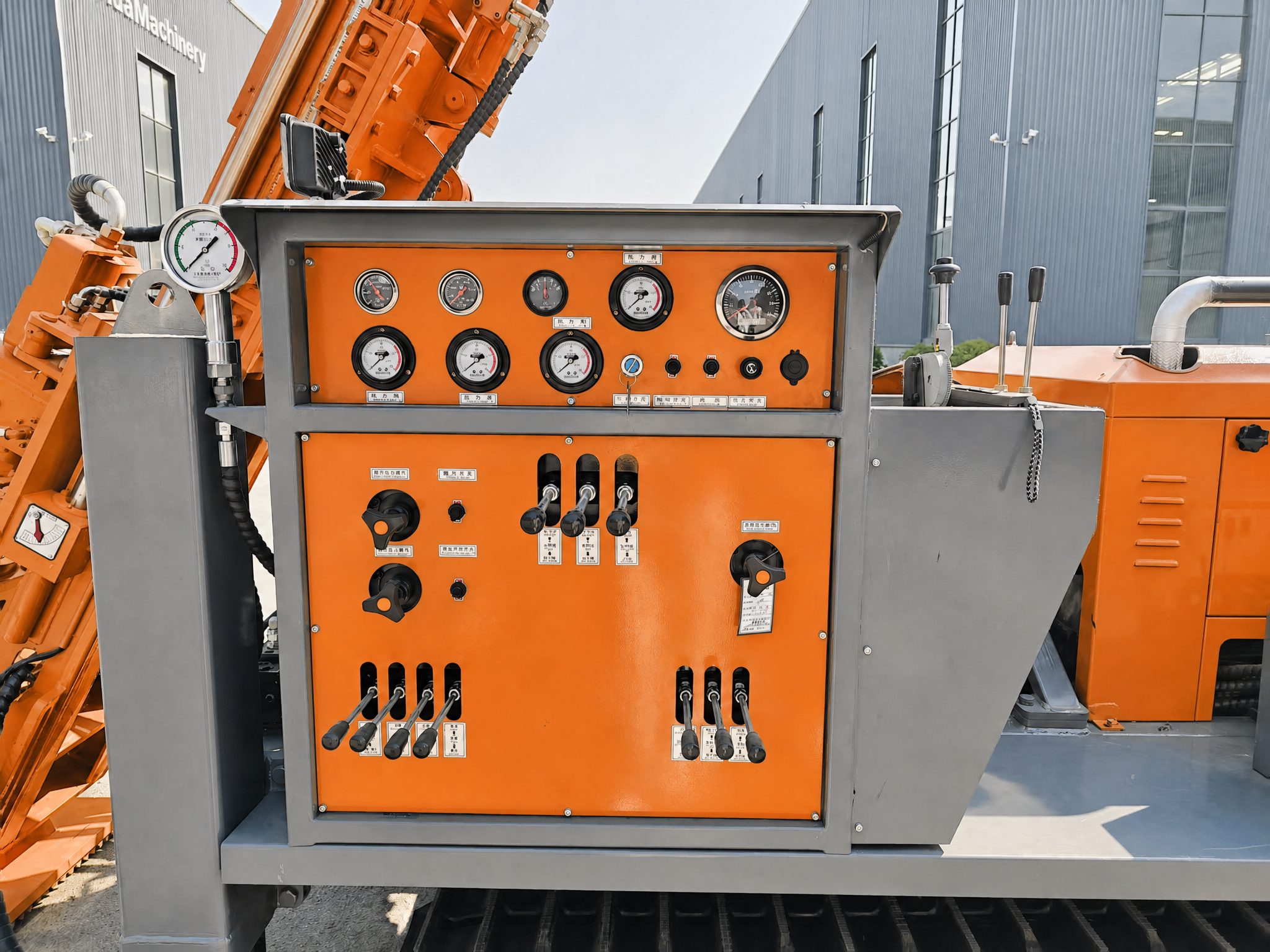

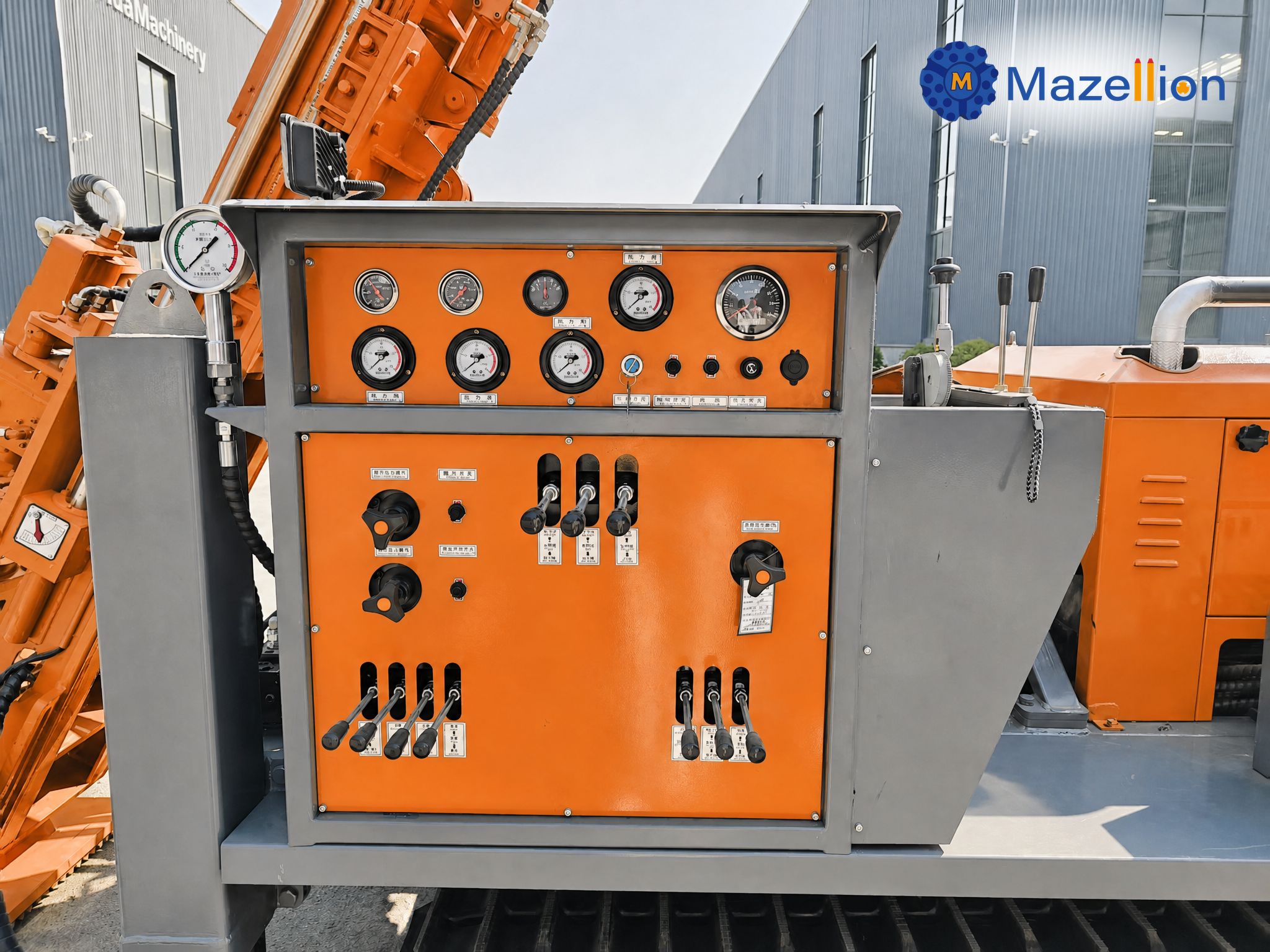

Engineered for easy operation with intuitive controls, the MCE400 minimizes training requirements while maintaining consistent, high-speed drilling performance.

Q1: What are the maximum drilling depths for different core sizes?

The MCE400 delivers 480m with BTW, 400m with NTW, and 200m with HTW – select the appropriate core size based on your depth requirements and sample diameter needs.

Q2: What is the difference between FDX-400 and FDG-400?

FDX-400 features rubber tracks (5.3T, 2.5 km/h) for minimal ground disturbance and sensitive site operations, while FDG-400 features steel tracks (5.8T, 3.0 km/h) for superior durability and traction in rugged, off-road terrain – choose based on your site conditions.

Q3: How does the MCE400 help compress project timelines?

The high-speed drilling performance combined with 500m wireline rope capacity and 110m/min hoisting speed enables rapid core retrieval without tripping the drill string – significantly reducing cycle times and accelerating exploration programs.

Q4: What is the wireline rope capacity and how does it benefit operations?

The 500m rope capacity enables efficient core retrieval at significant depths without the need for multiple rope extensions, while the 15kN lifting force and 110m/min hoisting speed ensure fast, reliable core recovery.

Q5: What engine powers the MCE400?

The rig is powered by a reliable 75kW Yuchai engine, delivering consistent, dependable power for high-speed exploration drilling.

Q6: Is the MCE400 suitable for confined sites?

Yes – the compact footprint (5.3–5.8T, 5400×1800×2300mm transport dimensions) enables operation in tight urban sites, underground workings, and other confined locations where larger rigs cannot access.

Q7: What are the shipping methods and delivery lead times?

We offer sea freight (20–30 days), air freight (5–7 days), and express courier (3–5 days), with standard production taking 15–20 working days – exact delivery schedules are confirmed upon order placement.

Q8: What after-sales service and technical support do you provide?

We provide a 12-month warranty against manufacturing defects, free remote technical support via phone, email, or video call, and on-site assistance upon request (travel costs apply) – maintenance manuals and genuine spare parts are also available for long-term support.

Q9: What payment methods do you accept?

We accept T/T (30% deposit + 70% before shipment), L/C at sight or usance, Western Union, and PayPal for samples, with Alibaba Trade Assurance also available – terms can be negotiated based on order volume and credit history.
