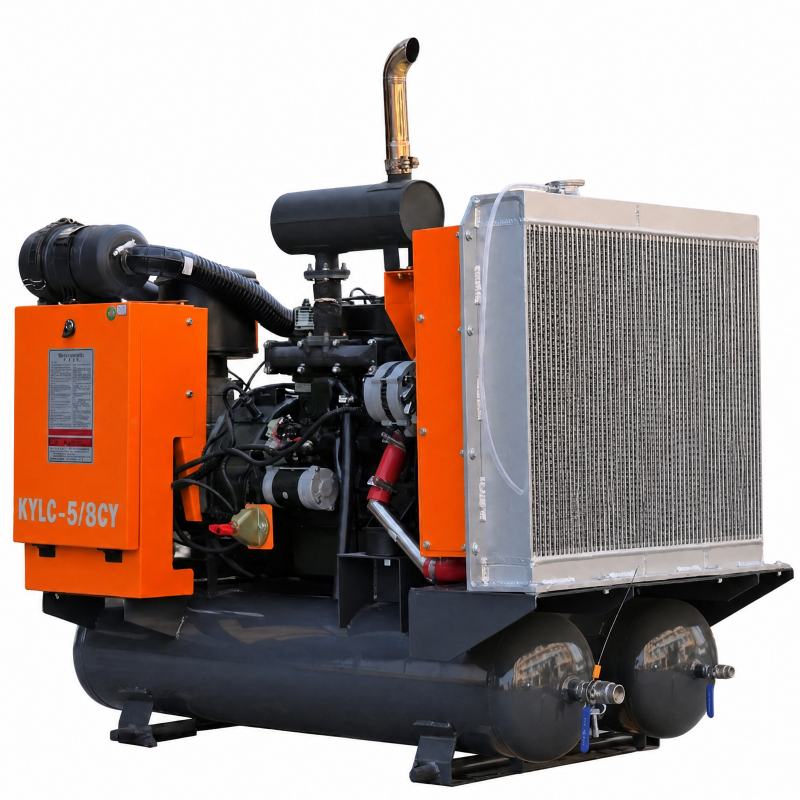

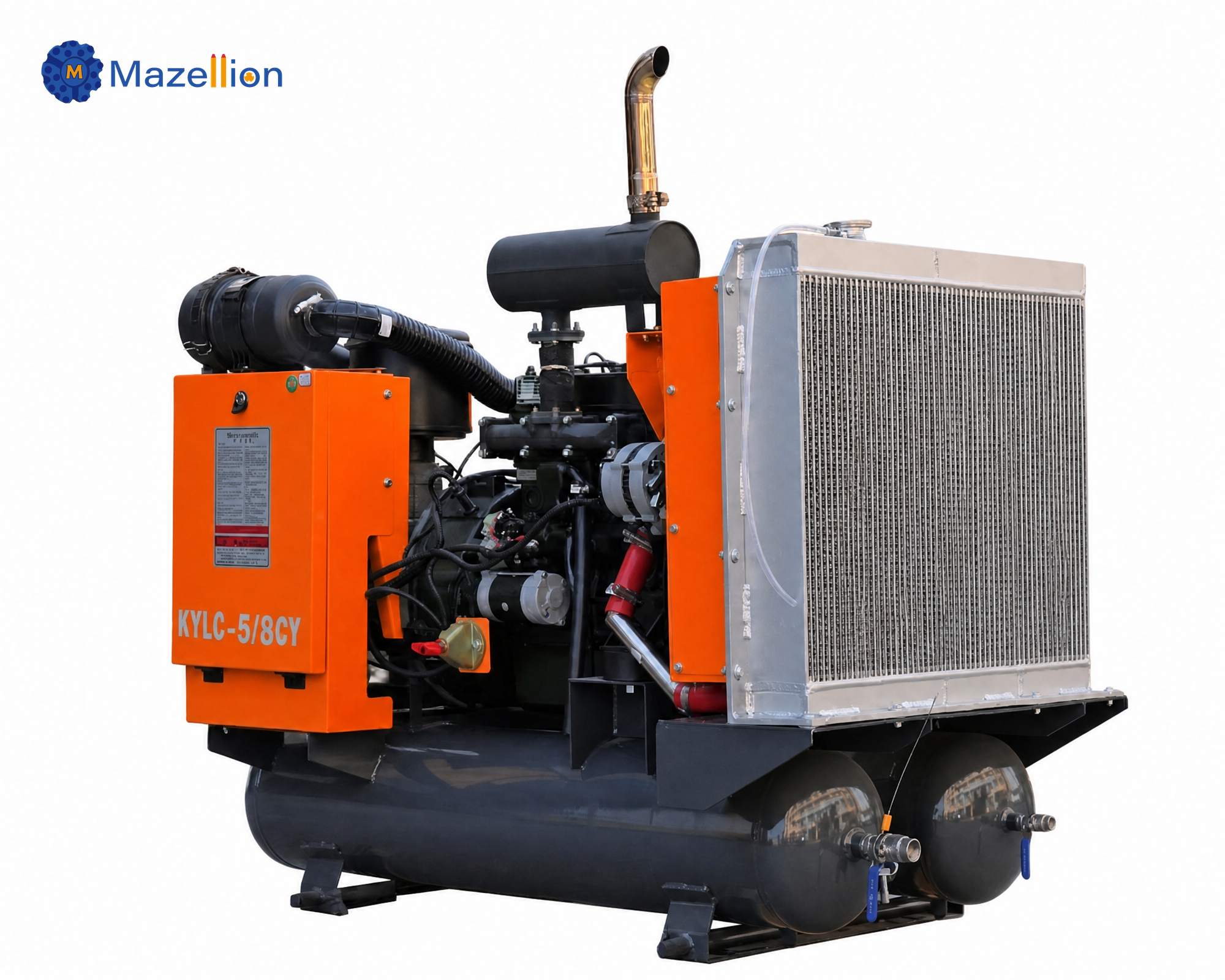

The KYLC-5-8CY is a compact and reliable diesel-powered portable screw air compressor designed for mining, quarrying, construction, and infrastructure projects. Delivering 5m³/min free air delivery at 8 bar pressure, it provides a stable compressed air supply for hand-held rock drills, jack hammers, pneumatic breakers, and various air-powered tools.
Powered by a fuel-efficient diesel engine and equipped with a high-performance screw air end, the compressor ensures continuous operation, low maintenance requirements, and excellent durability in demanding environments. Its compact structure and easy mobility make it particularly suitable for small-scale mining operations, quarry sites, road construction projects, and remote job locations across Africa, South America, and other developing markets.
With dependable performance, economical operation, and robust construction, the KYLC-5-8CY is an ideal compressed air solution for contractors, mining operators, and equipment distributors seeking productivity and reliability in the field.
Air Compressor Specification Table
| KYLC-5-8CY | |
| Type of Compressor | Screw type, single-stage compression, oil-cooled type |
| Exhaust Volume (m³/min) | 5 |
| Exhaust Pressure (bar) | 8 |
| Driving Mode | Driven by diesel engine |
| Oil and Gas Tank Capacity (L) | 50 |
| Lubricating Oil Quantity (L) | 32 |
| Air Filter | Hangfeng |
| Air End | Baosi |
| Diesel Engine | |
| Manufacturer | Xichai |
| Model | 4DW91-56G2-YM20W |
| Rated Speed (Full Load/No Load) (rpm) | 2650/2300/1450 |
| Rated Power (KW) | 41 |
| Number of Cylinders/Bore/Stroke | 4X90X100 |
| Displacement (L) | 2.54 |
| Cooler Liquid Capacity (L) | 12 |
| Engine Oil Capacity (L) | 7 |
| Fuel Tank Capacity (L) | 75 |
| Air Filter | Hangfeng |
| Oil Filter | B7367 |
| Battery | 6QW-120MF |
| Coupling | Marine |
| Traveling Speed (Km/h) | 0-20 |
| Dimensions and Weight | |
| Length (mm) | 1600 |
| Width (mm) | 1100 |
| Height (mm) | 1600 |
| Static Weight (Kg) | 700 |
| Outlet Exhaust Valve | G1"xl"&G1/2"x1 |
| Quotation | |
| Recommended Number of Units to be Loaded in a 40HC/HQ High Cube Container | 14 |
1. Small-Scale Gold Mining Operations
The compressor is widely used in artisanal and small-scale gold mining projects across Africa and South America, supplying compressed air to hand-held rock drills used for tunnel excavation and ore extraction.
2. Quarry and Stone Extraction
Ideal for quarry operators using pneumatic rock drills for granite, limestone, basalt, and aggregate production. The unit provides reliable air power for drilling blast holes and stone splitting operations.
3. Road Construction and Infrastructure Projects
Suitable for powering jack hammers and pneumatic breakers during road maintenance, bridge construction, utility installation, and infrastructure development projects.
4. Mining Equipment Maintenance
The compressor can support pneumatic impact wrenches, grinders, and maintenance tools used in mining workshops and field service operations.
5. Municipal and Civil Engineering Projects
Frequently used for trench excavation, demolition work, concrete breaking, and underground utility installation where portable compressed air is required.
1. Optimized for Hand-Held Rock Drills and Jack Hammers
The KYLC-5-8CY is specifically designed to power pneumatic rock drills, jack hammers, and air breakers commonly used in small-scale mining, quarrying, and construction projects. Its stable 5m³/min airflow ensures consistent tool performance and improved productivity.
2. Reliable Diesel Power for Remote Mining Sites
Equipped with a dependable diesel engine, the compressor operates independently of the electrical grid. This makes it an ideal solution for remote mines, quarry sites, rural construction projects, and field operations where electricity is unavailable.
3. Compact Design for Easy Transportation
With compact dimensions and a lightweight structure, the unit can be easily transported between different work locations. Contractors can quickly relocate the compressor as mining faces or construction zones change.
4. Fuel-Efficient Screw Compression Technology
The advanced oil-cooled screw air end delivers continuous compressed air with lower fuel consumption and reduced maintenance requirements compared to traditional piston compressors, helping users lower operating costs.
5. Built for Harsh Working Environments
Designed for demanding outdoor applications, the compressor features efficient cooling, robust protection systems, and durable industrial components capable of handling dusty, hot, and rugged mining conditions.
1.Q: What pneumatic equipment can this compressor operate?
A:The KYLC-5-8CY is suitable for hand-held rock drills, jack hammers, pneumatic breakers, impact wrenches, air grinders, and other medium-duty pneumatic tools commonly used in mining and construction.
2.Q: How many rock drills can this compressor support simultaneously?
A:The compressor can typically operate one YT28 rock drill continuously or multiple smaller pneumatic tools depending on their individual air consumption requirements.
3.Q: Is this compressor suitable for mining applications?
A:Yes. It is widely used in small-scale mining, quarrying, and mining support operations where hand-held rock drills and pneumatic tools are required.
4.Q: Can this compressor work in remote locations without electricity?
A:Absolutely. The diesel-powered design allows independent operation in off-grid environments, making it ideal for remote mining and construction sites.
5.Q: Do you provide OEM and distributor support?
A:Yes. We offer diesel engine customization, OEM branding, customized colors, technical support, spare parts supply, and distributor cooperation programs for overseas partners.
