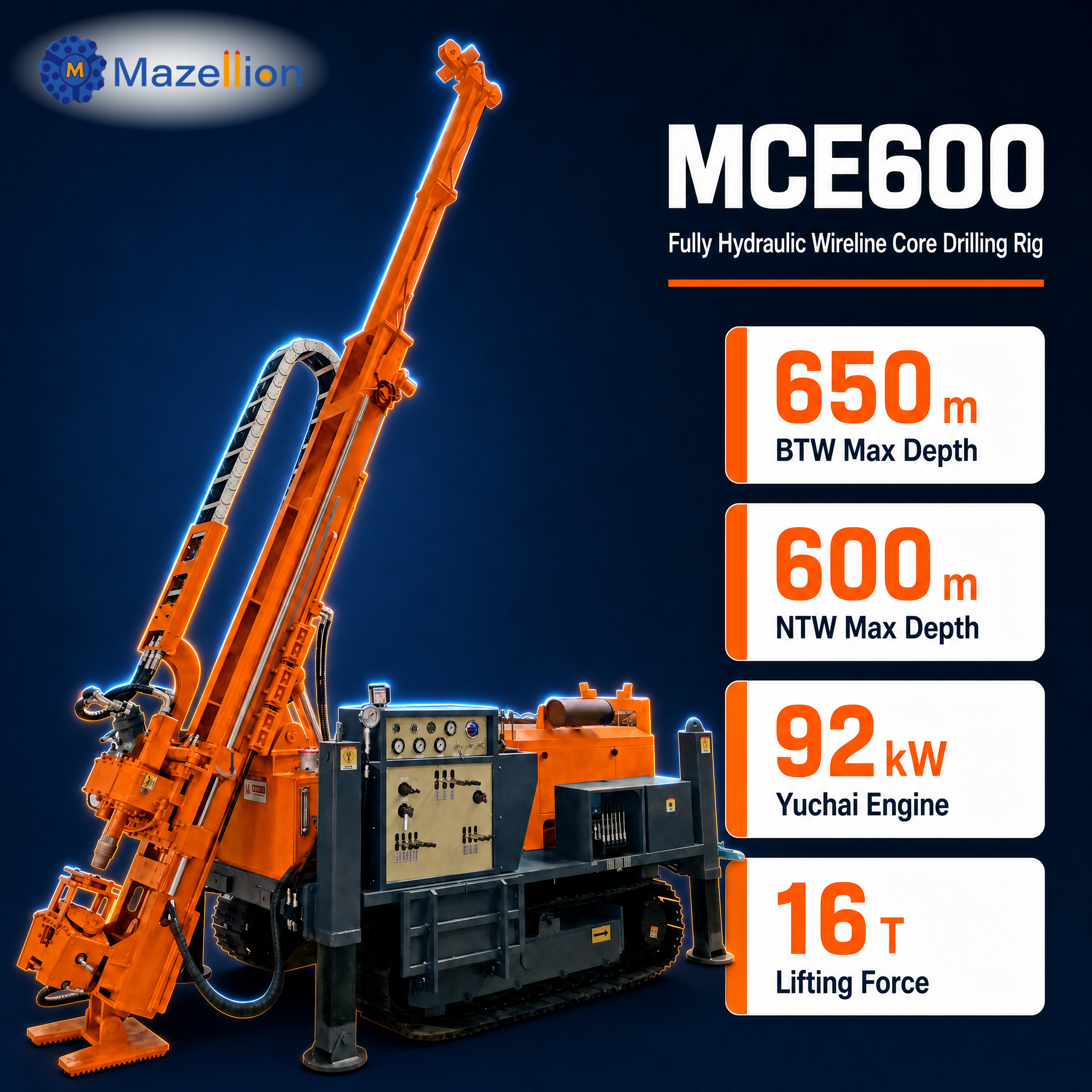

MCE600 Fully Hydraulic Wireline Core Exploration Drilling Rig – Deep Coring with Precise Sampling, Strong Adaptability & High Efficiency 600M Depth

The MCE600 Fully Hydraulic Wireline Core Exploration Drilling Rig is a deep-capacity coring solution engineered for demanding mineral exploration, geotechnical investigation, and hydrogeological drilling programs requiring precise core sampling at significant depths. Capable of obtaining representative core samples, the MCE600 delivers accurate and reliable physical materials for geological analysis and research – essential for informed exploration decisions.

The rig demonstrates strong adaptability across varied geological conditions and working environments, performing effectively whether drilling through hard rock or complex strata. Its high drilling speed and work efficiency enable rapid completion of drilling tasks, maximizing exploration productivity and compressing project timelines.

Available in two track configurations – rubber track (FDX-600) for minimal ground disturbance or steel track (FDG-600) for superior durability in rugged terrain – the MCE600 provides exceptional versatility across diverse exploration environments. The remote control walking system enables flexible, convenient movement and operation across different sites, while the robust design ensures excellent stability during the drilling process, minimizing the impact of external factors on core sampling quality. With 650m BTW, 600m NTW, 300m HTW capability, 800m wireline rope capacity, 16T lifting force, and 45–90° drilling angle adjustment, the MCE600 delivers the depth, precision, and adaptability you need to complete the most demanding exploration projects with confidence.

1. Deep Mineral Exploration

Used extensively for deep mineral exploration programs requiring precise core sampling at depths up to 650m BTW, providing accurate geological data for resource evaluation and mine development planning.

2. Geotechnical Investigation

Employed in deep geotechnical site investigations for major infrastructure projects, delivering reliable subsurface data for foundation design and construction planning.

3. Hard Rock & Complex Strata Drilling

The robust design and powerful performance enable effective drilling through hard rock, fractured formations, and complex strata where standard rigs may encounter difficulties.

4. Remote & Rugged Terrain

Available steel track option provides superior durability in rugged, off-road terrain, while the remote control walking system enables convenient operation across challenging sites.

5. Hydrogeological & Environmental Drilling

Applied in deep monitoring well installation and hydrogeological investigations where precise core sampling and minimal formation disturbance are essential requirements.

1. Precise Core Sampling for Accurate Geological Analysis

The MCE600 delivers representative core samples with exceptional quality, providing accurate and reliable physical materials for detailed geological analysis, resource evaluation, and informed exploration decision-making – ensuring confidence in your exploration results.

2. Strong Adaptability Across Varied Conditions

Engineered to perform effectively across diverse geological conditions and working environments, the MCE600 handles hard rock, complex strata, and challenging formations with consistent, reliable performance – maximizing exploration coverage.

3. High Drilling Efficiency for Rapid Project Completion

With high drilling speed and work efficiency, the MCE600 completes drilling tasks within short timeframes – significantly accelerating exploration programs, reducing project timelines, and delivering faster returns on exploration investment.

4. Remote Control Walking for Flexible Operation

The remote control walking system enables convenient, flexible movement and operation across different sites – allowing operators to position the rig precisely and relocate efficiently without manual handling or additional equipment.

5. Excellent Stability for Consistent Core Quality

The robust design ensures outstanding stability during the drilling process, minimizing the impact of external factors – such as vibration and ground conditions – on core sampling quality, delivering reliable, consistent sample recovery.

6. Extended 600m NTW Depth Capability

With 650m BTW, 600m NTW, and 300m HTW capability, the MCE600 handles deep exploration requirements, accessing subsurface formations that standard rigs cannot reach.

7. Powerful 92kW Yuchai Engine

Powered by a robust 92kW Yuchai engine delivering 1600 N·m maximum torque, the MCE600 provides ample power for demanding deep drilling operations.

8. Two Track Options for Terrain Flexibility

Choose FDX-600 with rubber tracks for minimal ground disturbance, or FDG-600 with steel tracks for superior durability and traction in rugged, off-road terrain – tailoring the rig to your specific environment.

9. Extended 800m Wireline Rope Capacity

The 800m rope capacity enables efficient core retrieval at significant depths without the need for multiple rope extensions, maximizing productivity for deep exploration programs.

Q1: What are the maximum drilling depths for different core sizes?

The MCE600 delivers 650m with BTW, 600m with NTW, and 300m with HTW – select the appropriate core size based on your depth requirements and sample diameter needs.

Q2: How does the MCE600 ensure precise core sampling?

The rig's excellent stability during drilling minimizes the impact of external factors on core quality, while the robust design and precise control deliver representative, high-quality samples for accurate geological analysis and research.

Q3: What is the difference between FDX-600 and FDG-600?

FDX-600 features rubber tracks (5.7T, 2.5 km/h) for minimal ground disturbance, while FDG-600 features steel tracks (6.2T, 3.0 km/h) for superior durability and traction in rugged, off-road terrain – choose based on your site conditions.

Q4: How does the remote control walking system benefit operations?

The remote control walking system enables convenient, flexible movement and operation across different sites – allowing operators to position the rig precisely and relocate efficiently without manual handling or additional equipment.

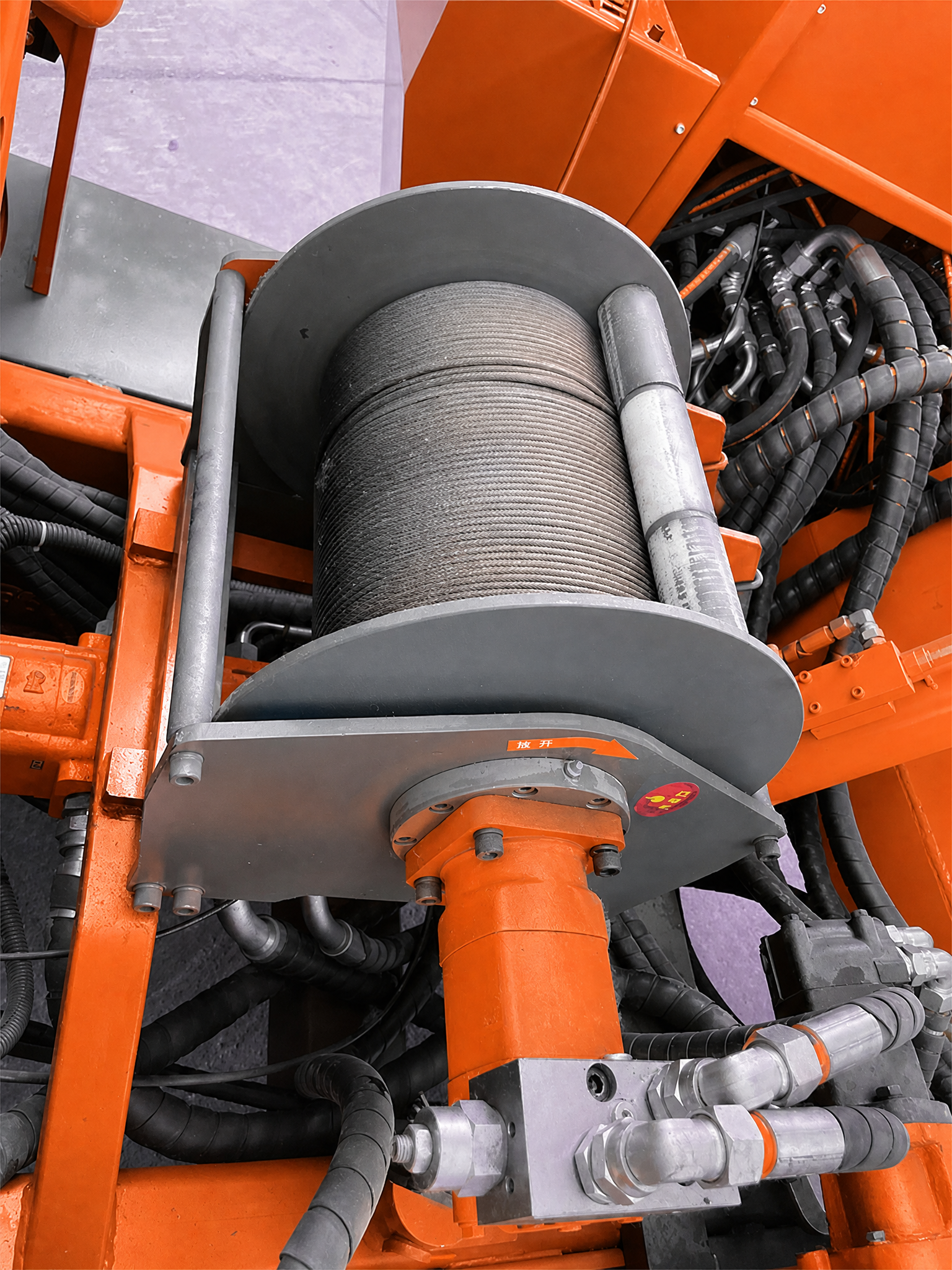

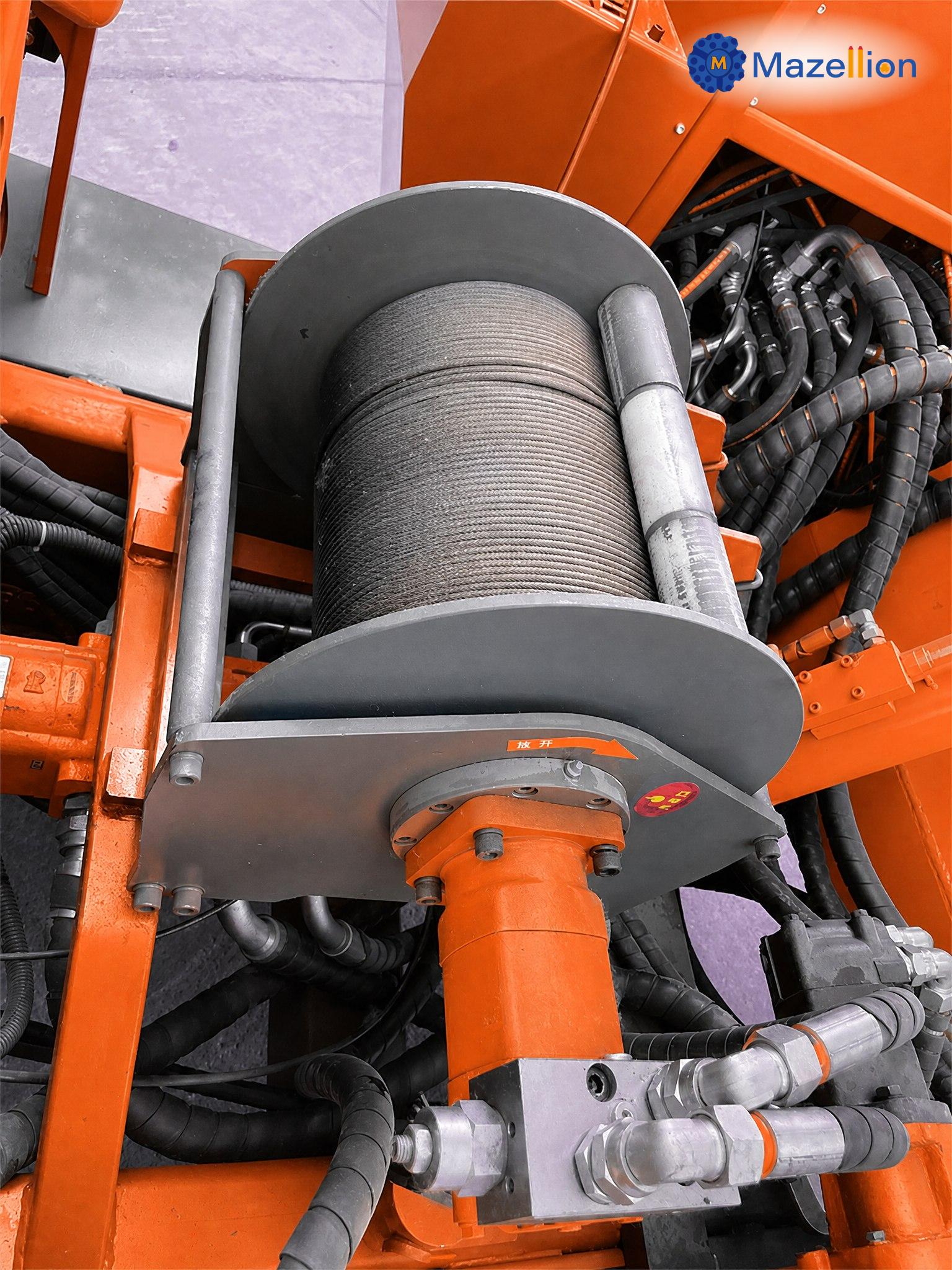

Q5: What is the wireline rope capacity and how does it benefit deep drilling?

The 800m rope capacity enables efficient core retrieval at significant depths without multiple rope extensions, while the 15kN lifting force and 110m/min hoisting speed ensure fast, reliable core recovery for deep exploration programs.

Q6: What engine powers the MCE600?

The rig is powered by a robust 92kW Yuchai engine delivering 1600 N·m maximum torque, providing ample power for demanding deep drilling operations.

Q7: Can the MCE600 handle complex geological conditions?

Yes – the rig demonstrates strong adaptability across varied geological conditions, performing effectively whether drilling through hard rock, fractured formations, or complex strata.

Q8: What are the shipping methods and delivery lead times?

We offer sea freight (20–30 days), air freight (5–7 days), and express courier (3–5 days), with standard production taking 15–20 working days – exact delivery schedules are confirmed upon order placement.

Q9: What after-sales service and technical support do you provide?

We provide a 12-month warranty against manufacturing defects, free remote technical support via phone, email, or video call, and on-site assistance upon request (travel costs apply) – maintenance manuals and genuine spare parts are also available for long-term support.
