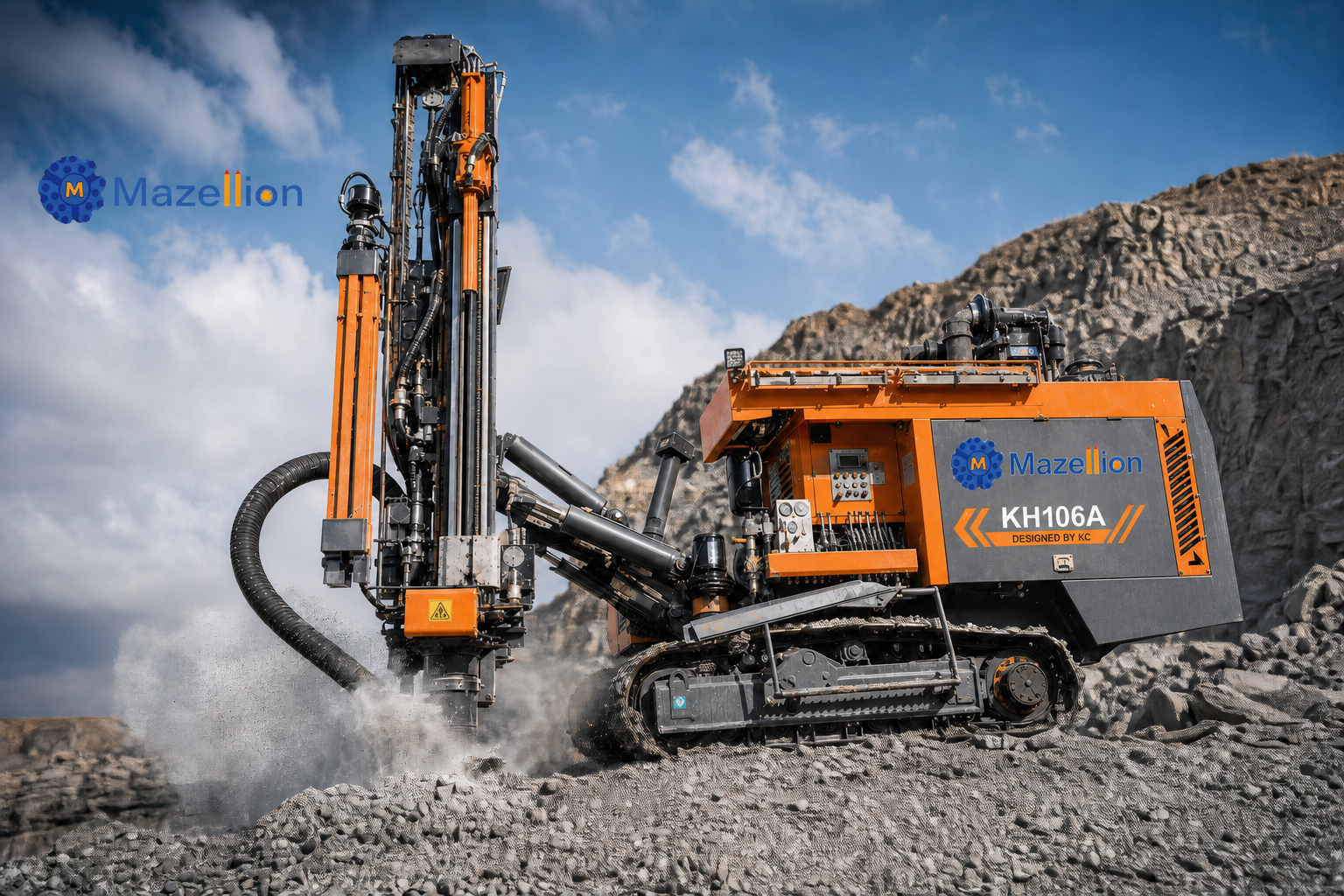

The KH106 Integrated DTH Drilling Rig is a heavy-duty, high-performance drilling solution designed for large-scale mining, quarrying, and hard rock blasting applications. Built for maximum power, stability, and durability, this model delivers strong drilling capability under demanding geological conditions.
The machine adopts a 7-series high-strength aluminum guide rail with stainless steel protective skin, ensuring a lightweight yet rigid structure with excellent wear resistance and long service life. Its optimized structural design enhances stability while maintaining excellent mobility in mining environments.
The KH106 is equipped with an electrically controlled automatic rod changing system, enabling fast and efficient rod connection and disassembly, significantly improving drilling efficiency and reducing manual labor intensity.

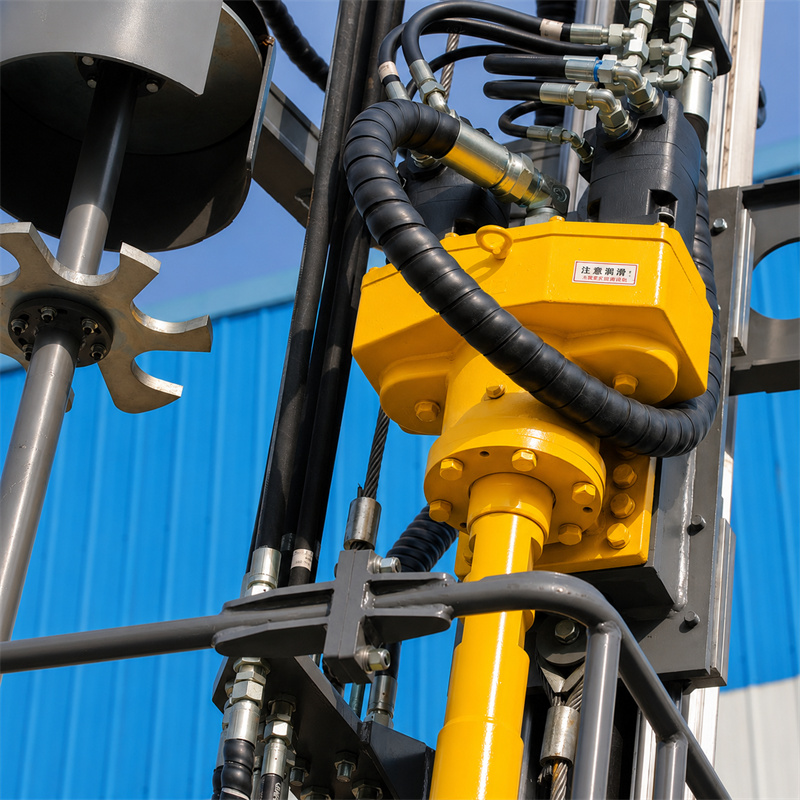

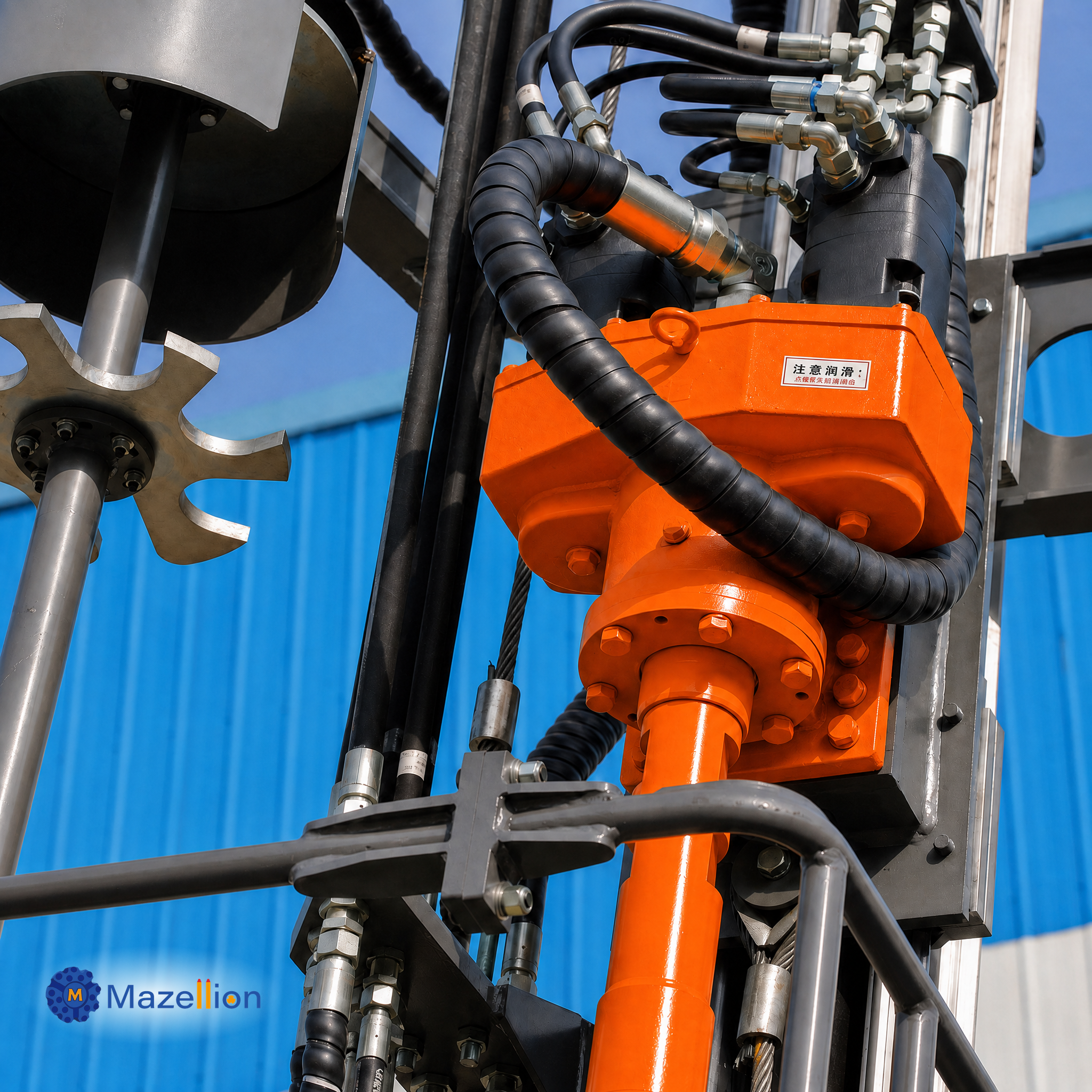

The power head pipeline system uses casing follower protection design, effectively reducing wear and extending service life, while adapting to complex and high-impact working conditions.

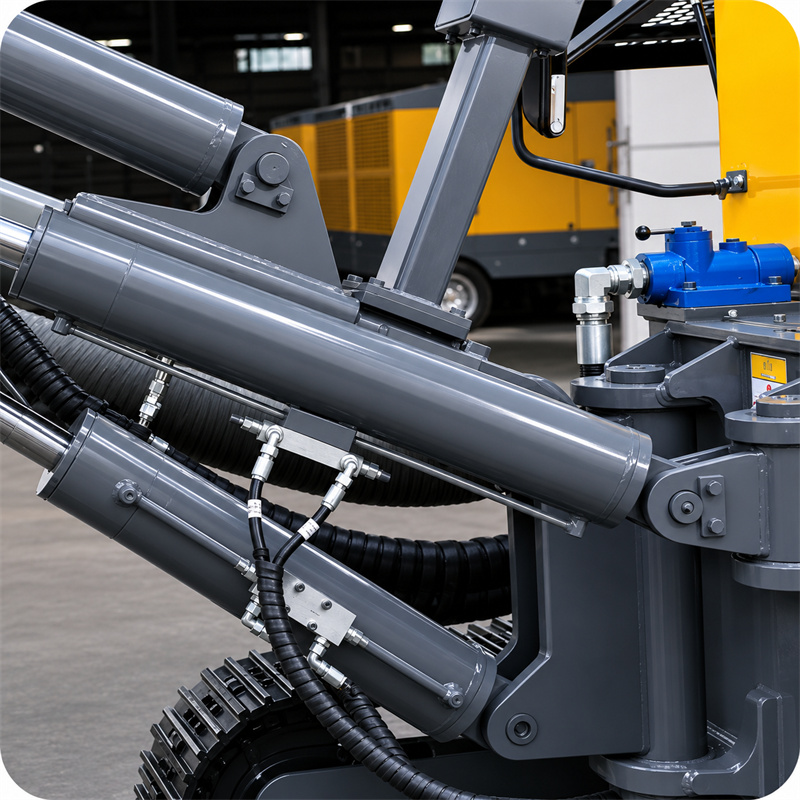

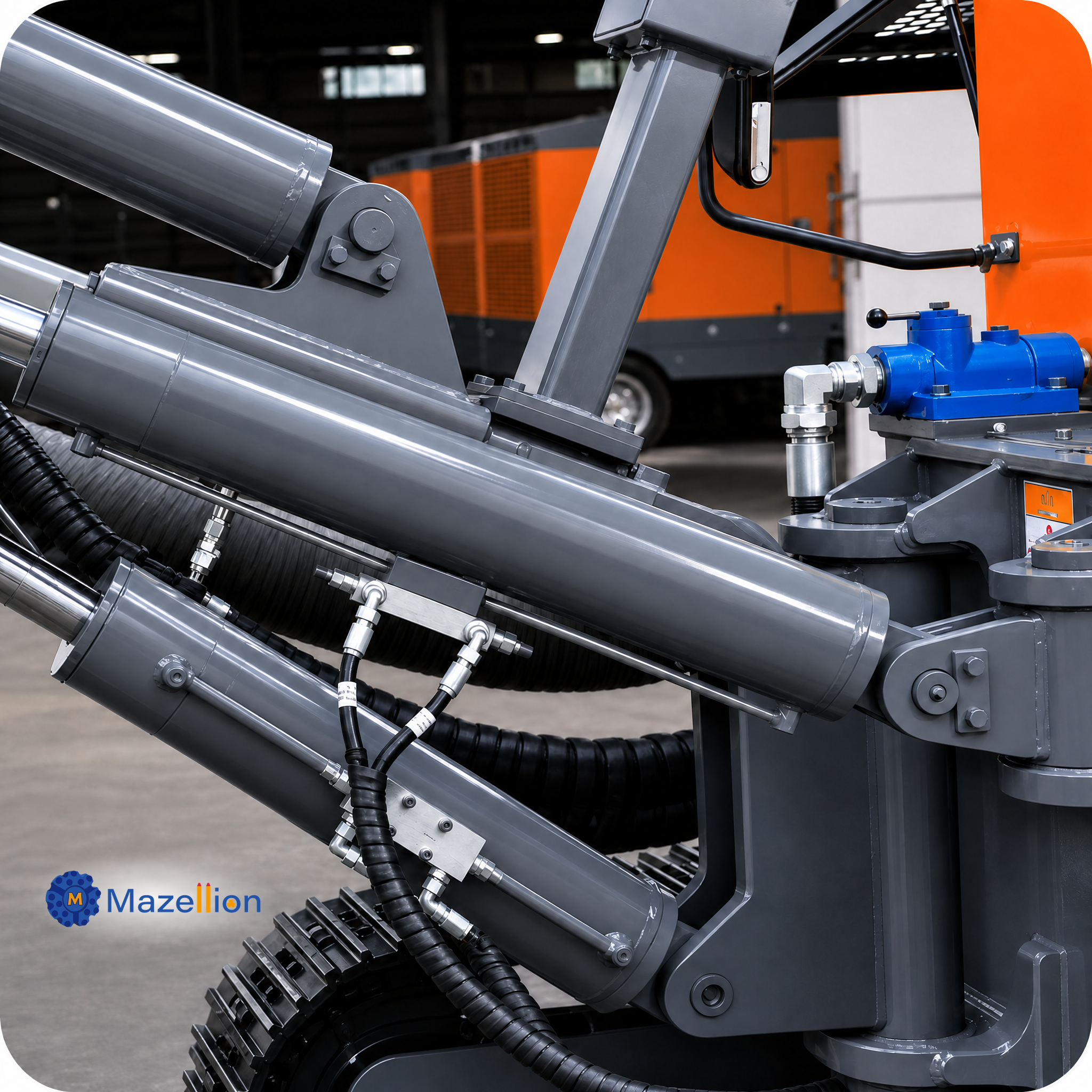

A large-stroke drill arm cylinder with precise positioning control provides flexible drilling angles, allowing the rig to adapt to different blasting and formation requirements.
Powered by a 206KW Yuchai diesel engine, the KH106 delivers strong and stable output performance. The new-generation two-stage compression screw air system ensures large air volume with low fuel consumption, improving both efficiency and operating economy.
Both the engine and air end are equipped with a dual-stage deep filtration system (desert air filter + mechanical alarm filtration assembly), ensuring clean air intake and reliable performance even in dusty mining environments.

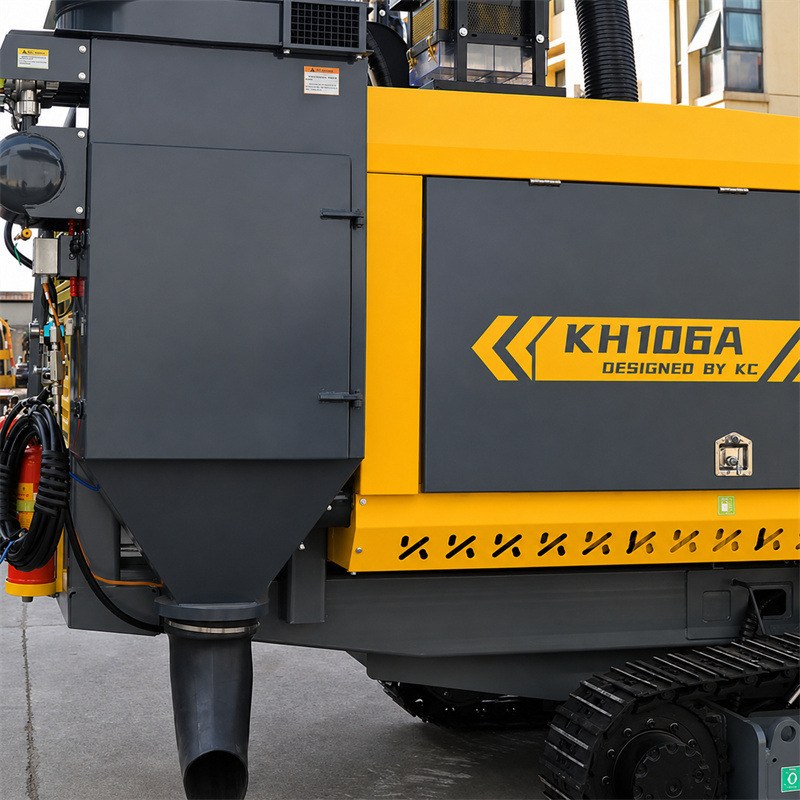

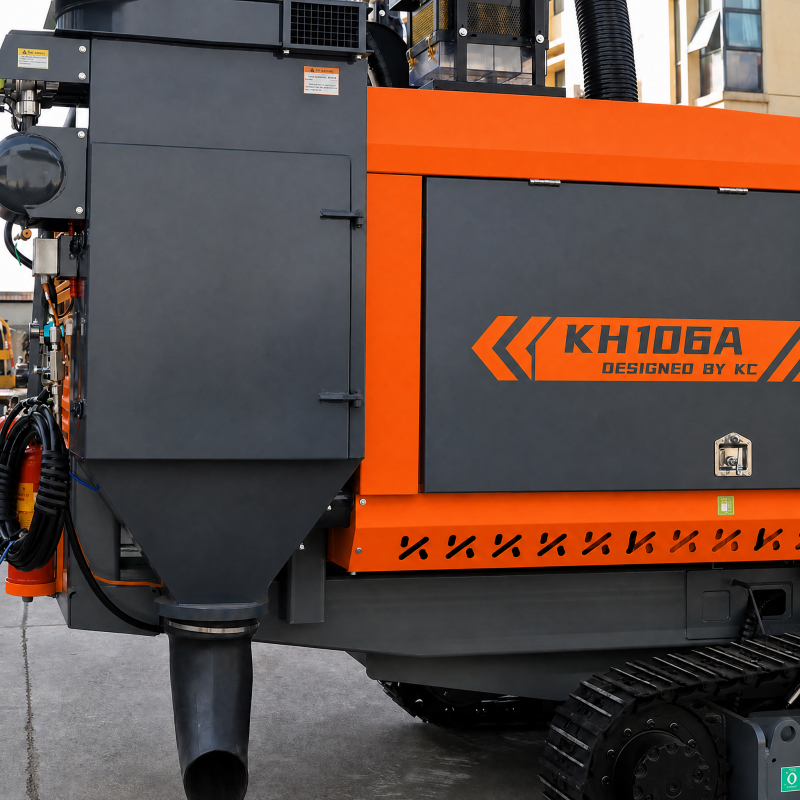

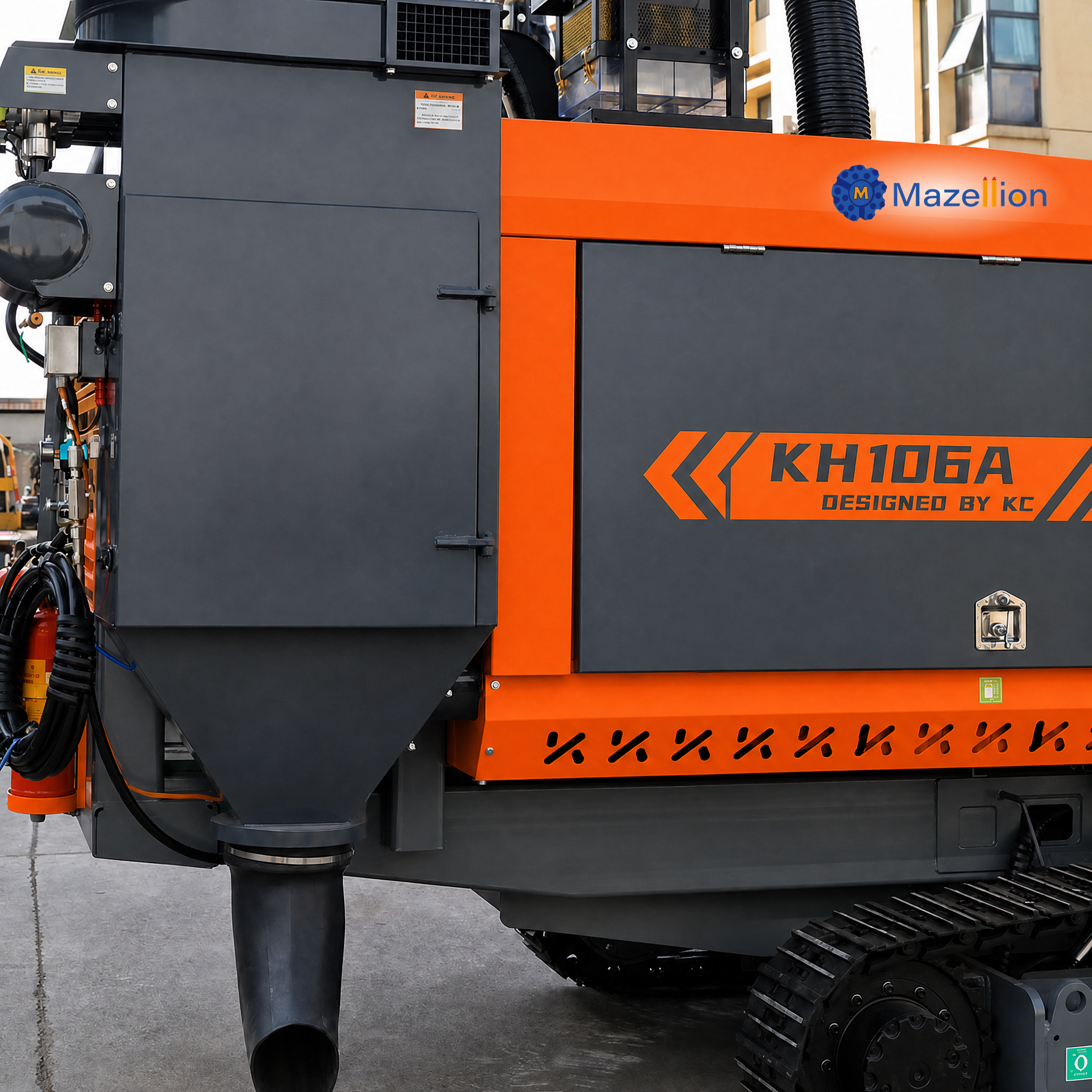

A 14-core high-efficiency dust collection system ensures effective slag removal and significant dust reduction, supporting modern green mining standards.
| Model of drilling rig | KH106 dth drilling rig |
| Hole diameter | 115–152mm |
| Drilling depth | 21m |
| Engine | Yuchai 206KW |
| Compressor | Two-stage compression, Boge 15 m^3, 20 Bar |
| Weight | 10Tons |
| Guide | Aluminum alloy |
| Feed form | Motor + Chain Propulsion |
| Feed motor | Eaton |
| Pump | Military-grade Pump |
| Valve | Qiangtian |
| Dust | Xuanhua 14-Core |
| Rotate torque | 4000N.m |
| Tramming speed | 3Km/h (Fast), 1.5Km/h (Slow) |
| Electric system | Imported Electrical Components, IP56 Waterproof and Dustproof |
| Feed length | 3400mm |
| Max pulling force | 18KN |
| L×W×H | 8800×2300×2600mm |
| DTH | 4”High Wind Pressure Impactor |
| Hammer | 115 drill bit |
| Fitting | A set of toolboxes |
1. Small to Medium Open-Pit Mining
Suitable for mining operations such as limestone, coal, and small-scale metal ore extraction where cost efficiency is a priority.
2. Quarry Blasting Projects
Widely used in stone quarry drilling for blasting hole preparation, providing stable performance and consistent penetration in medium-hard rock.
3. Road and Civil Construction
Applicable for highway, railway, and infrastructure foundation drilling where moderate drilling depth and diameter are required.
4. General Rock Drilling Works
Suitable for general-purpose rock drilling in various geological conditions, especially in medium-hard formations.
5. Cost-Sensitive Mining Projects
Ideal for contractors or new mining projects with limited budget who still require reliable DTH drilling performance.
1. Cost-Effective Mining Solution
The KH843 offers a lower investment cost while maintaining stable drilling performance, making it ideal for budget-conscious mining operations.
2. Stable Power System
Equipped with a 162KW Yuchai diesel engine, ensuring reliable power output and stable operation in continuous drilling conditions.
3. Efficient Air Compression System
Uses a two-stage 15m³/min, 18Bar screw air compressor (Bosi) to provide stable airflow for efficient DTH hammer drilling.
4. Durable Steel Structure Design
High-strength steel beam construction ensures strong rigidity and long service life, suitable for harsh mining environments.
5. Simple Operation & Easy Maintenance
Motor + chain propulsion system with a straightforward control structure allows easy operation and low maintenance requirements, reducing downtime and service cost.
Q1: What is the drilling range of KH843?
The KH843 supports 90–115mm hole diameter drilling, suitable for small to medium mining and blasting projects.
Q2: What is the drilling depth?
The maximum drilling depth is approximately 21 meters, depending on geological conditions.
Q3: Does KH843 have an automatic rod changing system?
No. The KH843 uses manual rod handling, which helps reduce machine cost and is suitable for budget-oriented projects.
Q4: What engine is used?
It is powered by a 162KW Yuchai diesel engine (Yuchai), known for durability and stable performance.
Q5: What compressor system is included?
It is equipped with a two-stage 15m³/min, 18Bar screw air compressor for stable DTH drilling performance.
Q6: Is it suitable for hard rock?
Yes, it can handle medium-hard rock conditions with stable drilling efficiency using DTH hammer system.
Q7: Who is KH843 best suited for?
It is ideal for small mining contractors, quarry operators, and projects where cost control is more important than full automation.
Q8: Which payment term can you accept?
30% T/T in advanced, 70% T/T against the B/L copy.
Q9:Why choose your company?
We are a professional manufacturer specializing in drilling and mining equipment with extensive export experience.
Our advantages include: Strict quality control ,Competitive factory-direct pricing, Global after-sales support, Fast spare parts supply, Professional technical team, Rich experience in mining and tunneling projects.
Our equipment has been exported to Southeast Asia, South America, Africa, Central Asia, the Middle East, and Europe, serving customers in mining, quarrying, and underground construction industries worldwide.
