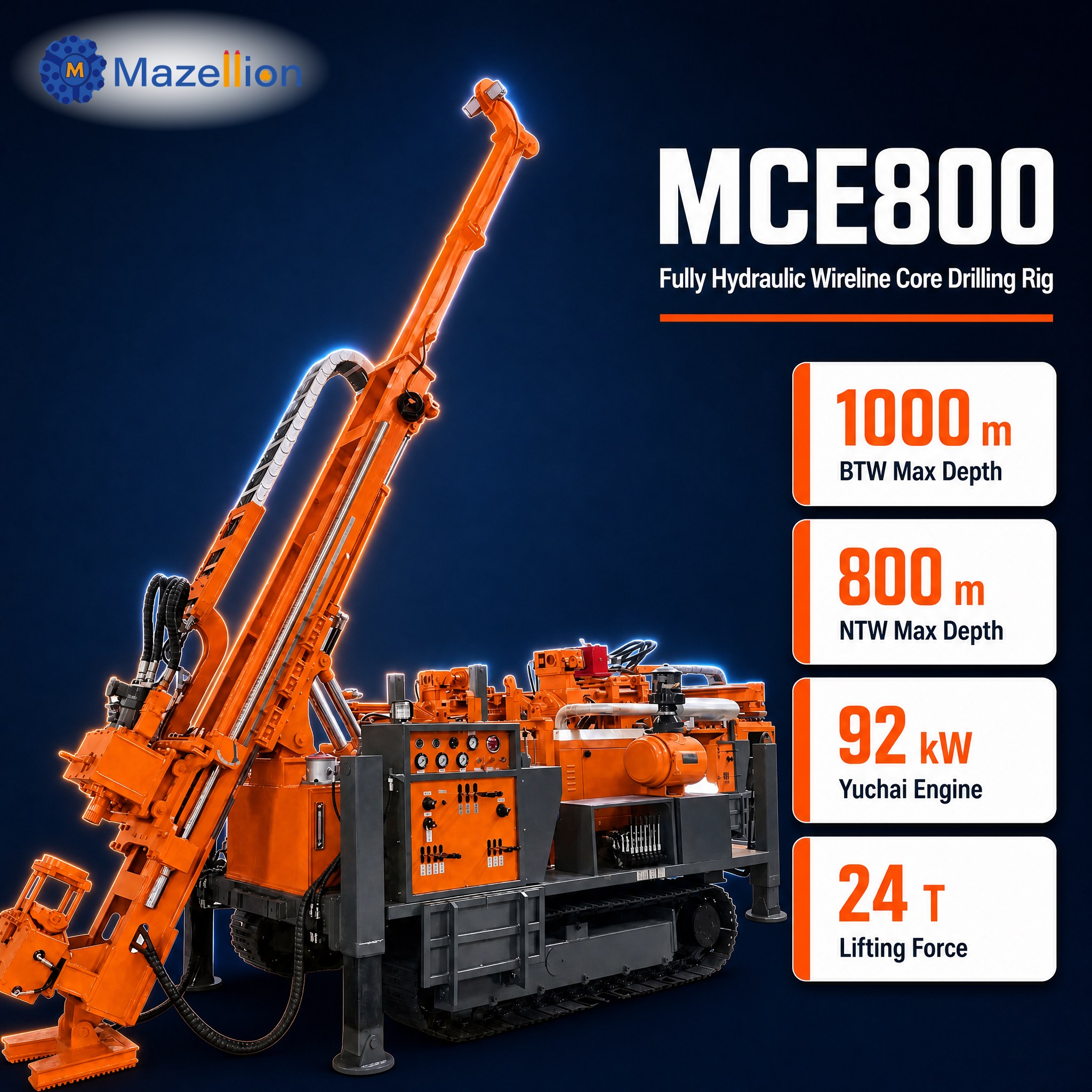

MCE800 Fully Hydraulic Wireline Core Exploration Drilling Rig – High-Efficiency Deep Coring with Compact Portability & Low Maintenance (800m NTW)

The MCE800 Fully Hydraulic Wireline Core Exploration Drilling Rig is a high-performance deep coring solution engineered for mineral exploration, geological surveys, and large-scale geotechnical investigation programs demanding efficiency, reliability, and exceptional core quality at significant depths. Featuring high coring efficiency, the MCE800 adapts to various stratigraphic conditions and quickly obtains complete cores – meeting the demands of modern high-efficiency exploration programs.

The rig features a compact, portable body that facilitates transportation across complex terrains including mountains and jungles, enabling deployment in remote and challenging exploration sites where access is limited. Built with a strong, stable platform and precise hydraulic control, the MCE800 delivers low vibration during operation – ensuring consistent core quality and reliable sample recovery.

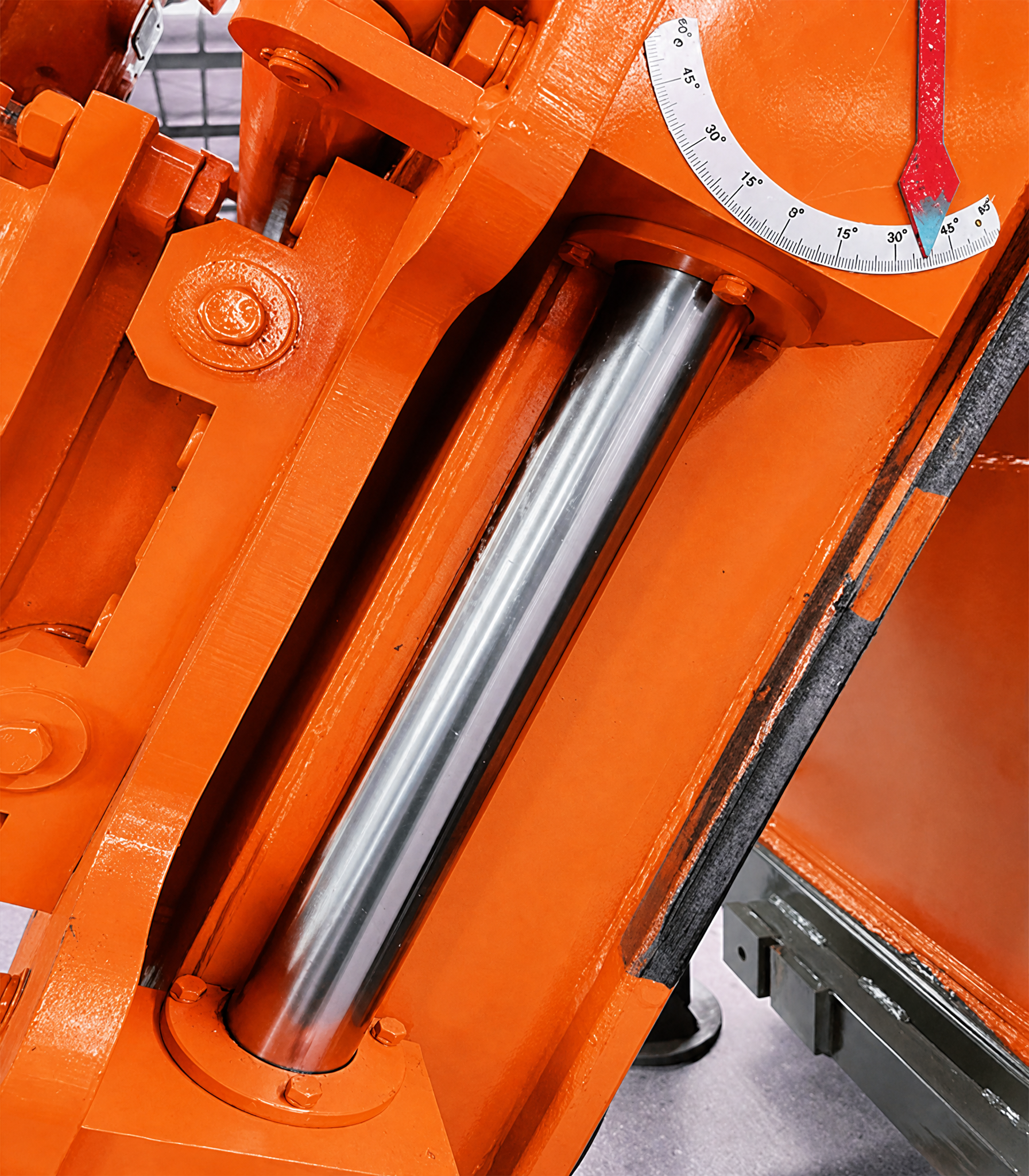

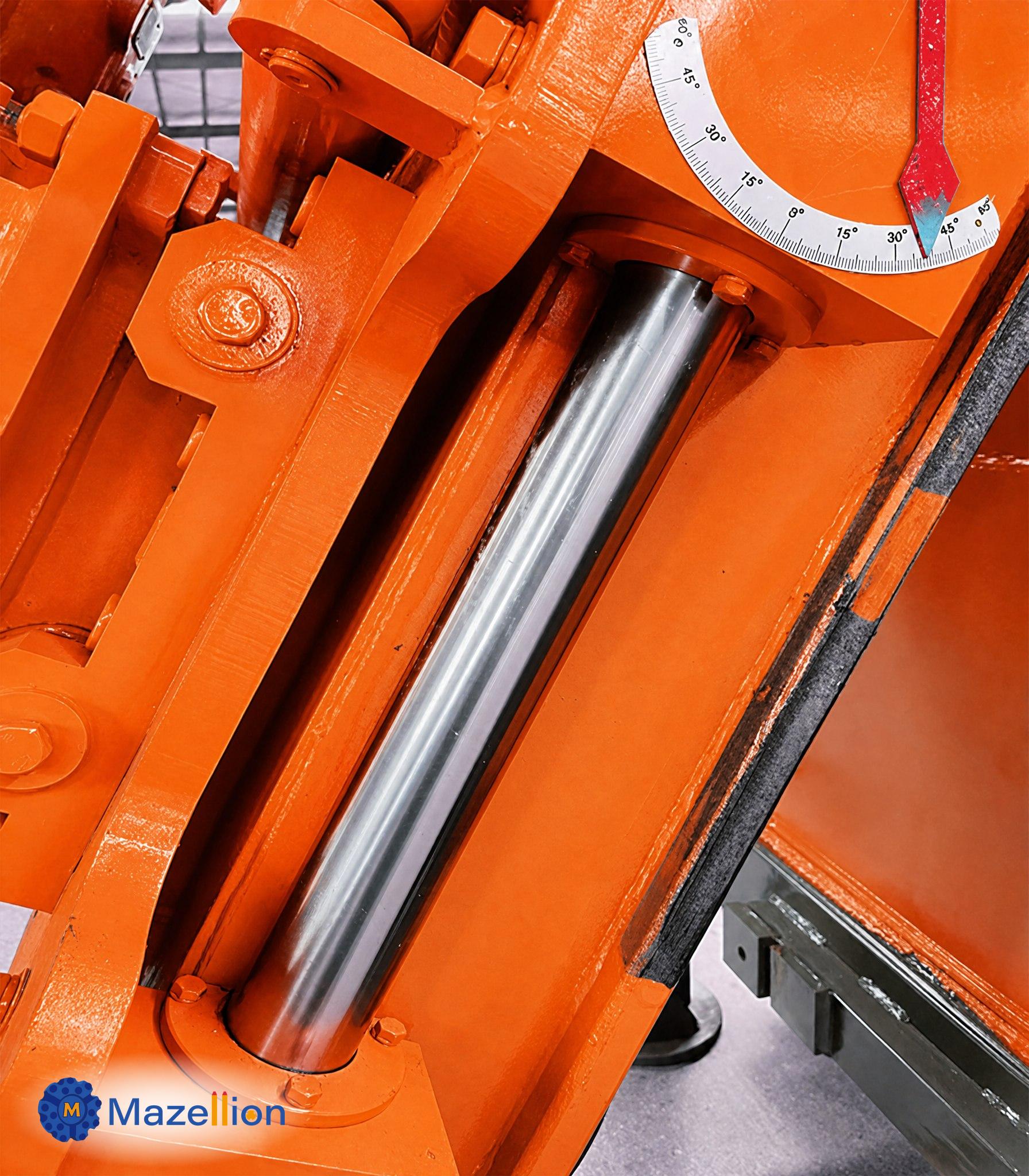

Engineered for long-term dependability, the MCE800 incorporates wear-resistant copper sleeve materials in key components, resulting in a low failure rate that reduces maintenance frequency and lowers overall operating costs. With 1000m BTW, 800m NTW, 600m HTW capability, 1000m wireline rope capacity, 24T lifting force, and 45–90° drilling angle adjustment, the MCE800 delivers the depth, efficiency, and reliability you need to complete the most demanding exploration projects with confidence.

1. Deep Mineral Exploration

Used extensively for deep mineral exploration programs requiring high-efficiency coring at depths up to 1000m BTW, delivering complete, representative core samples for resource evaluation and mine development planning.

2. Regional Geological Surveys

Employed in large-scale geological survey programs where stratigraphic adaptability, core quality, and exploration efficiency are essential for accurate geological mapping and assessment.

3. Remote & Challenging Terrain

The compact, portable body facilitates transportation across complex terrains including mountains, jungles, and rugged off-road environments, enabling exploration in remote areas with limited access.

4. Deep Geotechnical Investigation

Applied in deep geotechnical site investigations for major infrastructure projects, providing reliable subsurface data for foundation design and construction planning.

5. Hard Rock & Complex Stratigraphic Conditions

The robust design and precise hydraulic control enable effective drilling through hard rock, fractured formations, and complex stratigraphic conditions with minimal vibration and excellent core recovery.

1. High Coring Efficiency for Demanding Exploration

The MCE800 delivers exceptional coring efficiency, adapting to various stratigraphic conditions while quickly obtaining complete, high-quality cores – meeting the demands of modern high-efficiency exploration programs and accelerating project timelines.

2. Compact, Portable Body for Complex Terrain Access

The compact, portable design facilitates transportation across complex terrains including mountains, jungles, and rugged off-road environments – enabling deployment in remote exploration sites where larger rigs cannot access.

3. Strong Stability & Precise Hydraulic Control

Built with a strong, stable platform and precise hydraulic control, the MCE800 delivers low vibration during operation – ensuring consistent core quality, reliable sample recovery, and accurate geological data.

4. Low Failure Rate with Wear-Resistant Components

Key components incorporate wear-resistant copper sleeve materials, resulting in a low failure rate that reduces maintenance frequency, minimizes downtime, and significantly lowers overall operating costs.

5. Extended 800m NTW Coring Capability

With 1000m BTW, 800m NTW, and 600m HTW capability, the MCE800 handles deep exploration requirements, accessing subsurface formations at depths that standard rigs cannot reach.

6. Powerful 6-Cylinder Yuchai Engine

Powered by a robust 6-cylinder Yuchai 92kW engine delivering 2000 N·m maximum torque, the MCE800 provides exceptional power for demanding deep drilling operations.

7. Massive Lifting Capacity for Deep Operations

With 24T lifting force and 10T propulsion force, the MCE800 provides the capacity required for the deepest hole operations, ensuring reliable pipe handling and efficient drilling cycles.

8. Extended 1000m Wireline Rope Capacity

The 1000m rope capacity enables efficient core retrieval at extreme depths without multiple rope extensions, while the 20kN lifting force and 110m/min hoisting speed ensure fast, reliable core recovery.

9. Water + Air Cooling for Extended Operations

The combined water and air cooling system ensures reliable operation during extended shifts in demanding conditions, preventing overheating and maintaining consistent performance for maximum productivity.

10. Steel Track Durability for Rugged Terrain

The steel track undercarriage delivers superior durability and traction in rugged, off-road terrain, providing the stability and mobility required for remote exploration operations.

Q1: What are the maximum drilling depths for different core sizes?

The MCE800 delivers 1000m with BTW, 800m with NTW, and 600m with HTW – select the appropriate core size based on your depth requirements and sample diameter needs.

Q2: How does the MCE800 ensure high coring efficiency?

The rig adapts to various stratigraphic conditions while quickly obtaining complete cores through precise hydraulic control and stable operation – meeting the demands of modern high-efficiency exploration programs.

Q3: Is the MCE800 suitable for remote and challenging terrain?

Yes – the compact, portable body facilitates transportation across complex terrains including mountains, jungles, and rugged off-road environments, enabling deployment in remote exploration sites with limited access.

Q4: How does the MCE800 maintain low vibration and core quality?

Built with a strong, stable platform and precise hydraulic control, the MCE800 delivers low vibration during operation – ensuring consistent core quality, reliable sample recovery, and accurate geological data.

Q5: What is the failure rate and how does it affect operating costs?

Key components incorporate wear-resistant copper sleeve materials, resulting in a low failure rate that reduces maintenance frequency, minimizes downtime, and significantly lowers overall operating costs.

Q6: What engine powers the MCE800?

The rig is powered by a robust 6-cylinder Yuchai 92kW engine delivering 2000 N·m maximum torque, providing exceptional power for demanding deep drilling operations.

Q7: What is the wireline rope capacity and how does it benefit deep drilling?

The 1000m rope capacity enables efficient core retrieval at extreme depths without multiple rope extensions, while the 20kN lifting force and 110m/min hoisting speed ensure fast, reliable core recovery.

Q8: What is the cooling method and why is it important?

The combined water and air cooling system ensures reliable operation during extended shifts in demanding conditions, preventing overheating and maintaining consistent performance for maximum productivity.

Q9: What are the shipping methods and delivery lead times?

We offer sea freight (20–30 days), air freight (5–7 days), and express courier (3–5 days), with standard production taking 15–20 working days – exact delivery schedules are confirmed upon order placement.

Q10: What after-sales service and technical support do you provide?

We provide a 12-month warranty against manufacturing defects, free remote technical support via phone, email, or video call, and on-site assistance upon request (travel costs apply) – maintenance manuals and genuine spare parts are also available for long-term support.
