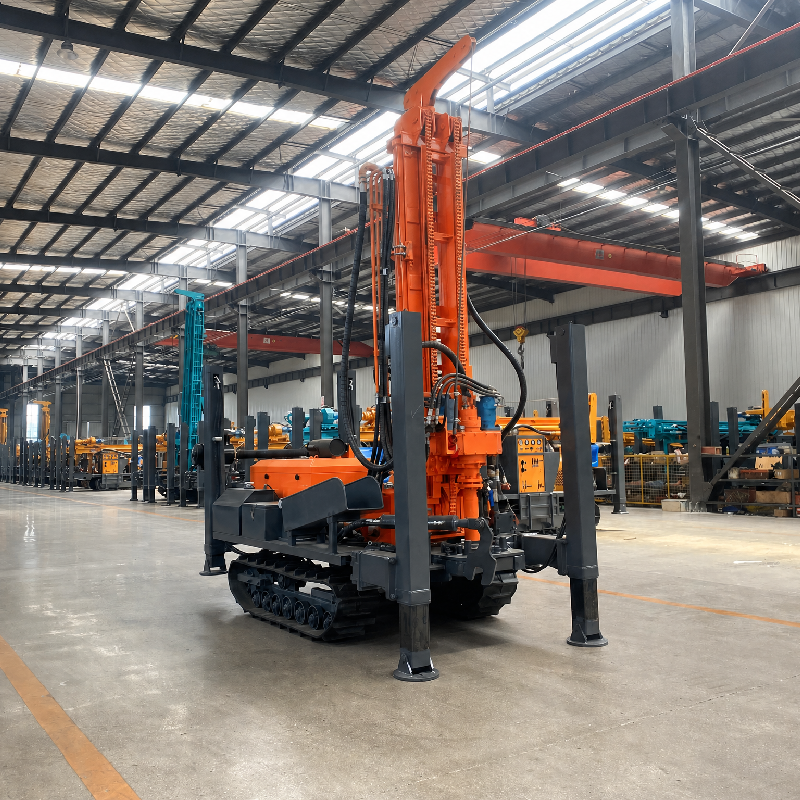

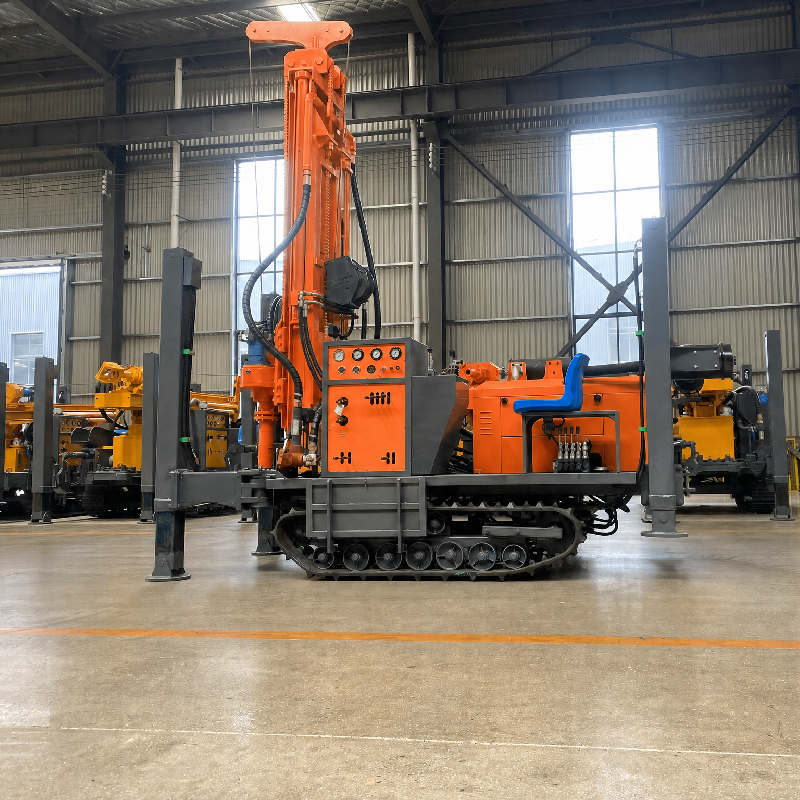

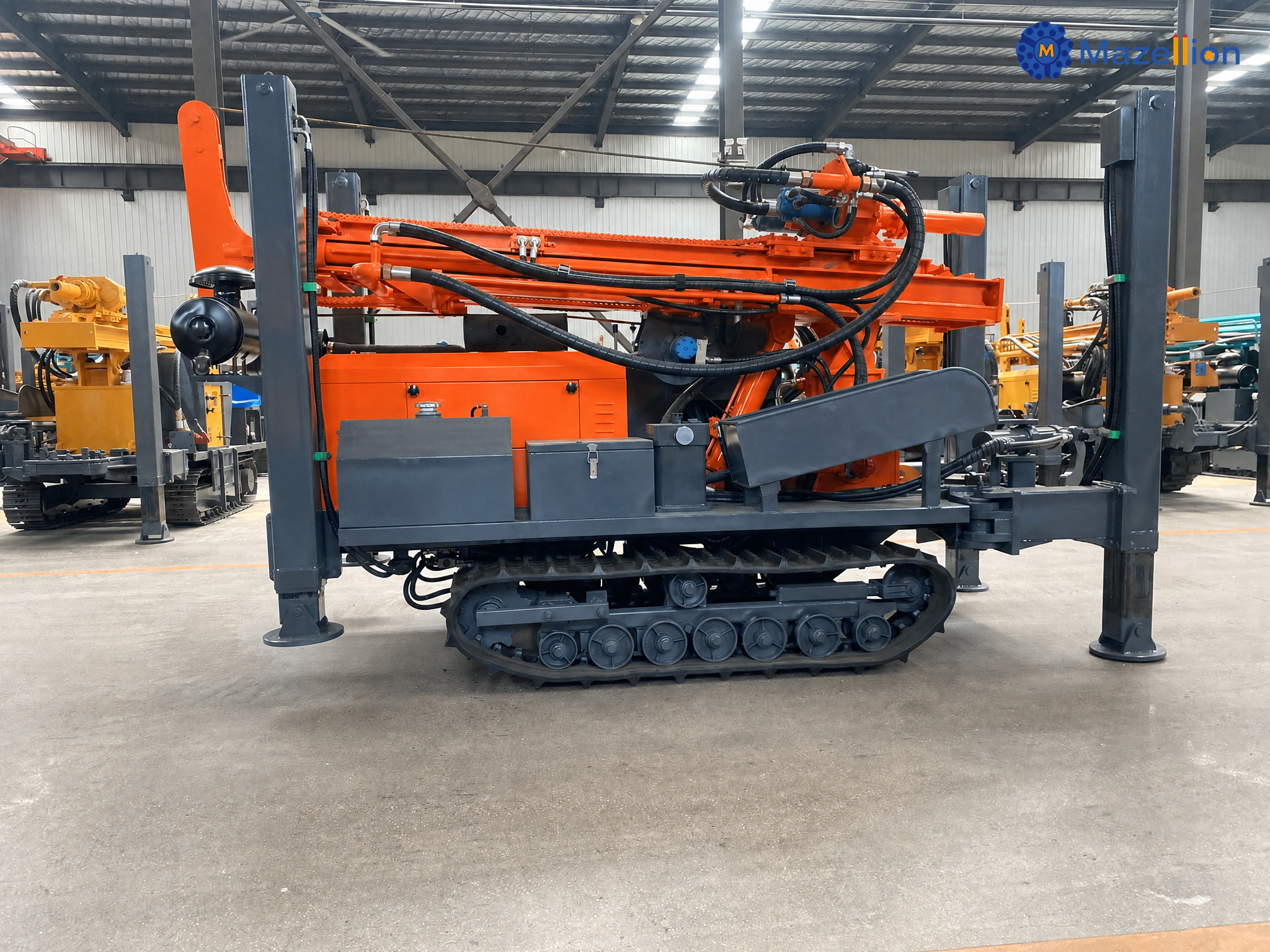

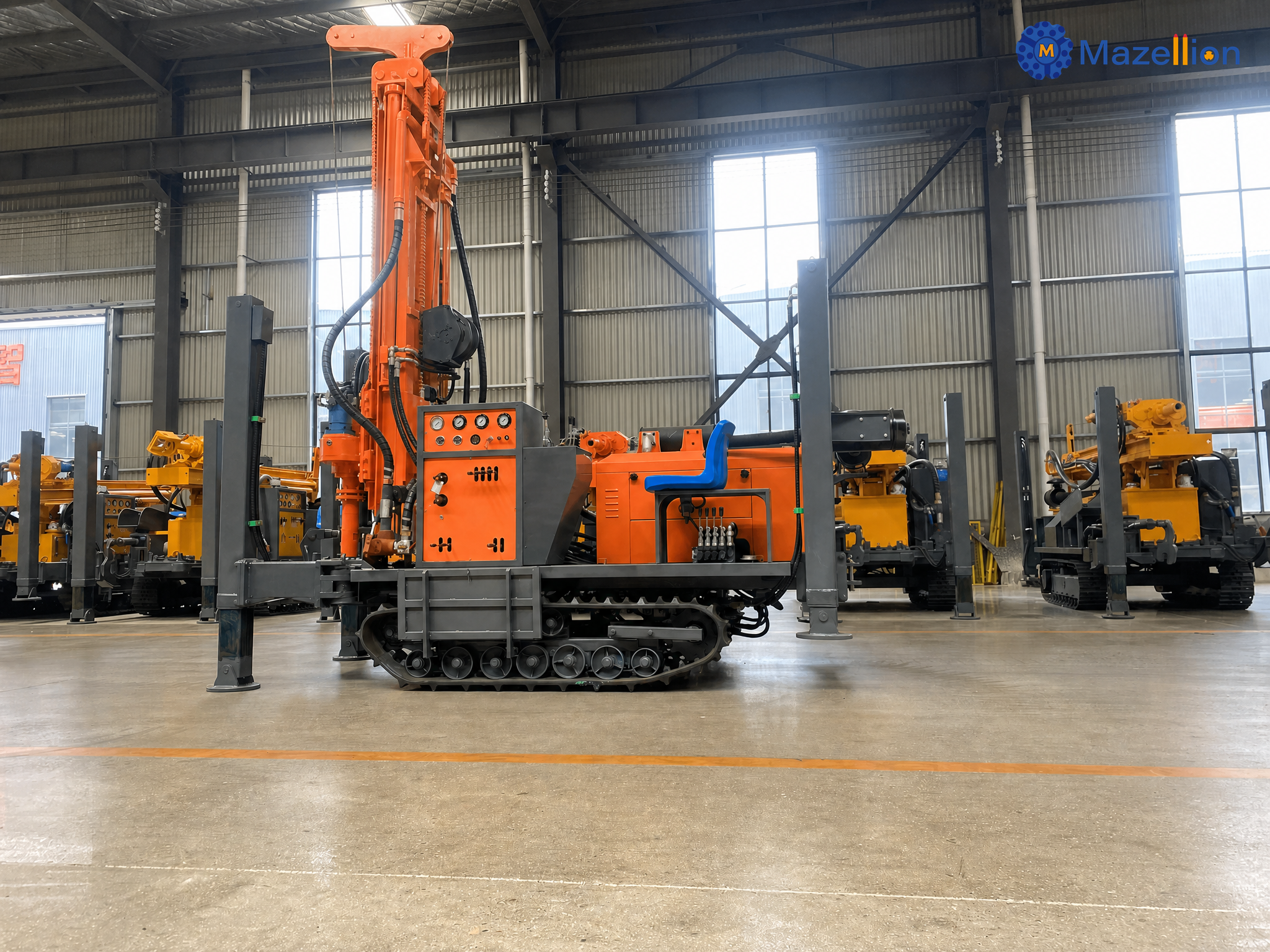

KCX200 Fully Hydraulic Water Well Drilling Rig – Rubber Track Mounted with Powerful 58kW Yuchai Engine for Residential & Versatile Drilling (200m Depth)

The KCX200 Fully Hydraulic Water Well Drilling Rig is designed for efficient water well, geothermal, foundation, and exploration drilling projects. Equipped with a reliable 58kW Yuchai engine, the rig delivers strong power output, excellent fuel efficiency, and stable performance in various working conditions.

Featuring a durable rubber track system, the KCX200 provides excellent mobility while minimizing ground damage, making it ideal for residential areas, gardens, and sensitive construction sites. The fully hydraulic system ensures smooth operation, precise control, and reduced operator fatigue.

Standard-equipped with a mud pump, the rig performs efficiently in soft to medium formations. It can also be factory-configured for dual-purpose water-air drilling, enabling DTH hammer drilling in hard rock, gravel, and fractured formations.

With a maximum drilling depth of 200m, 140–254mm hole diameter range, and compatibility with Φ76/Φ89 drill pipes and major DTH hammer brands, the KCX200 offers a flexible and reliable solution for contractors seeking high productivity, easy operation, and long-term durability.

1. Residential & Urban Water Well Drilling

The rubber track system provides exceptional ground protection, making the KCX200 the ideal choice for residential yard drilling, urban construction sites, and other applications where minimizing surface damage is critical – homeowners and contractors can drill efficiently without concerns about damaging lawns, driveways, or paved surfaces.

2. Agricultural & Irrigation Wells

Extensively used for farm irrigation wells and rural water supply projects, with 200m drilling depth meeting the requirements of most agricultural water needs while delivering reliable performance across varying soil and rock conditions.

3. Geothermal & Ground Source Heat Pump Systems

Well-suited for geothermal borehole installation with 140–254mm hole diameter range covering common heat exchange specifications, and the rubber tracks enabling operation on landscaped properties without causing damage.

4. Foundation Piling & Light Infrastructure

Applied in building foundations, utility poles, and small bridge piling projects where maneuverability and ground protection are important considerations alongside drilling performance.

5. Complex Geological Formations

Delivers effective penetration in loose strata, gravel layers, and hard rock through adjustable drilling parameters and compatibility with all major DTH hammer brands for air drilling operations.

6. Exploration & Geotechnical Drilling

Employed in mineral exploration and geotechnical investigation projects where versatility across formations and reliable core recovery are essential requirements.

1. Rubber Track System for Superior Ground Protection

The KCX200 features the same rubber track design as the KCX180, providing unmatched advantages for residential and sensitive site operations – the rubber tracks minimize ground disturbance, protect paved surfaces and landscaping, and allow operation in areas where steel-tracked rigs would cause unacceptable damage, making it the preferred choice for in-yard drilling projects.

2. Reliable Configuration for Efficient Drilling

Powered by a 58kW Yuchai engine for strong and stable performance, equipped with a winch system for convenient lifting operations, rubber tracks for unparalleled ground protection on residential and sensitive site, and a multi-stage air filtration system to protect the engine in dusty drilling environments and extend service life.

3. Factory-Configurable Dual-Purpose Water-Air Operation

The KCX200 comes standard with a mud pump for conventional water drilling, while the factory-original dual-purpose modification enables seamless transition to DTH hammer and air-assisted drilling – this integrated solution ensures optimal system reliability and warranty coverage, eliminating the risks associated with aftermarket modifications and delivering a turnkey rig that adapts to your specific project needs.

4. Versatile Drill Pipe & Hammer Compatibility

Supporting both Φ76 and Φ89 drill pipes with multiple length options (1.5m, 2.0m, 3.0m), the KCX200 offers exceptional flexibility for varying hole diameter and depth requirements while maintaining full compatibility with all major DTH hammer brands for maximum sourcing flexibility.

5. Extended 200m Drilling Depth

With 200m maximum drilling depth, the KCX200 handles deeper water well and geothermal applications than standard 180m-class rigs, expanding your operational capabilities and enabling access to deeper water sources for residential and agricultural projects.

6. Enhanced Hydraulic Performance

Featuring rapid rise speed of 30 m/min and fast feeding speed of 60 m/min with swing torque of 3400–4700 N·m, the KCX200 delivers superior cycle times and responsive control for efficient single-shift operations.

7. Stable, Reliable Operation

The robust hydraulic system and proven Yuchai engine combination ensures consistent performance with minimal downtime, reducing maintenance requirements and keeping long-term operating costs under control.

8. Comprehensive Formation Adaptability

From soft soils and clay to gravel, fractured rock, and hard granite, the KCX200 handles the full spectrum of geological conditions through switchable water and air drilling modes, ensuring uninterrupted progress regardless of formation changes.

Q1: What makes the KCX200 ideal for residential drilling?

The KCX200 features a rubber track system that provides exceptional ground protection, allowing operation on lawns, driveways, and paved surfaces without causing damage – this gives it unparalleled advantages for in-yard residential water well drilling where ground preservation is a primary concern.

Q2: What is the maximum drilling depth and hole diameter?

The KCX200 delivers 200m maximum drilling depth with hole diameters ranging from 140–254mm, handling deeper water well and geothermal applications than standard 180m-class rigs while covering most common borehole specifications.

Q3: Does the KCX200 support both water and air drilling?

The rig comes standard with a mud pump for conventional water drilling and can be factory-configured for dual-purpose water-air operation, enabling seamless transition to DTH hammer drilling and air-assisted methods for rapid penetration in hard rock, gravel, and fractured formations with full system integration and warranty coverage.

Q4: What drill pipe sizes are supported?

The rig supports both Φ76 and Φ89 drill pipes with length options of 1.5m, 2.0m, and 3.0m – select based on hole diameter, with Φ76 recommended for 140–180mm holes and Φ89 for 180–254mm holes.

Q5: Which DTH hammers are compatible with the KCX200?

The KCX200 supports all major DTH hammer brands including Mission, QL, SD, and equivalent series, providing maximum sourcing flexibility and allowing operators to use their preferred hammer brands.

Q6: What are the air pressure and consumption requirements?

Working air pressure ranges from 1.7–2.5 MPa with air consumption of 17–31 m³/min – ensure your air compressor meets these specifications for optimal DTH hammer performance.

Q7: What are the shipping methods and delivery lead times?

We offer sea freight (20–30 days), air freight (5–7 days), and express courier (3–5 days), with standard production taking 15–20 working days – exact delivery schedules are confirmed upon order placement.

Q8: What after-sales service and technical support do you provide?

We provide a 12-month warranty against manufacturing defects, free remote technical support via phone, email, or video call, and on-site assistance upon request (travel costs apply) – maintenance manuals and genuine spare parts are also available for long-term support.
