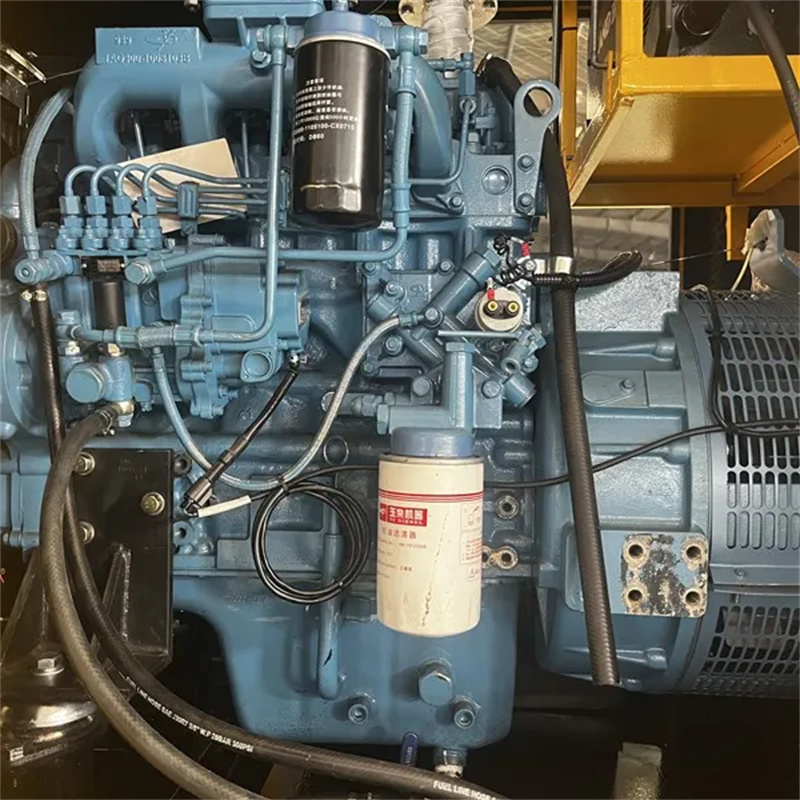

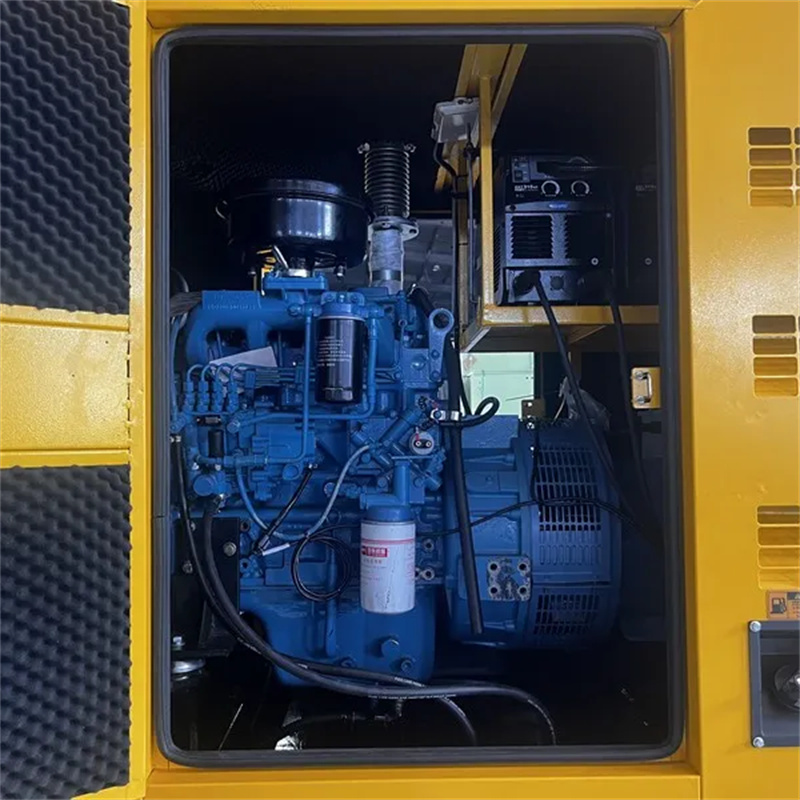

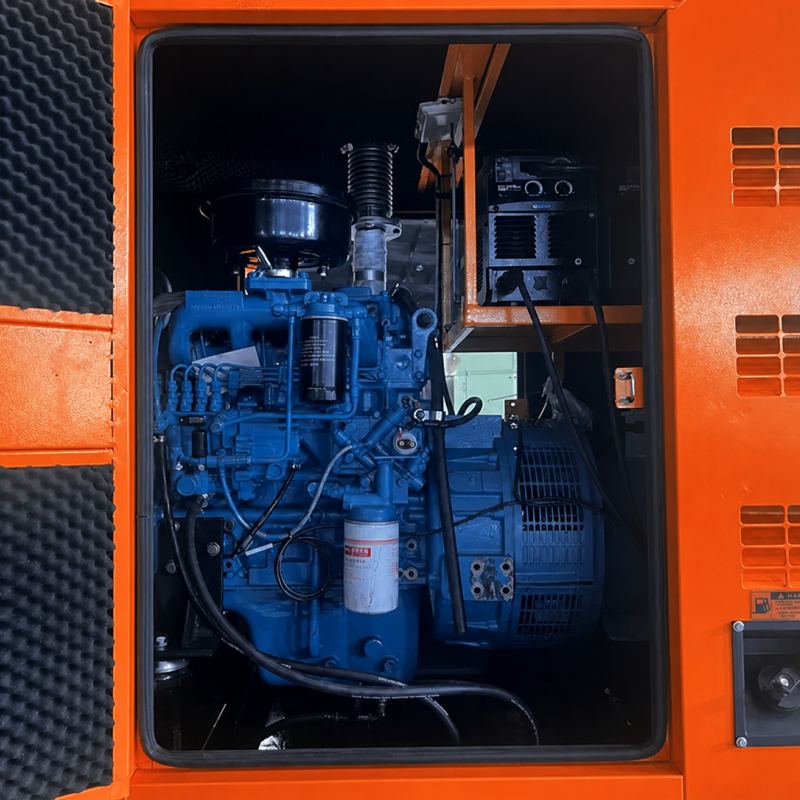

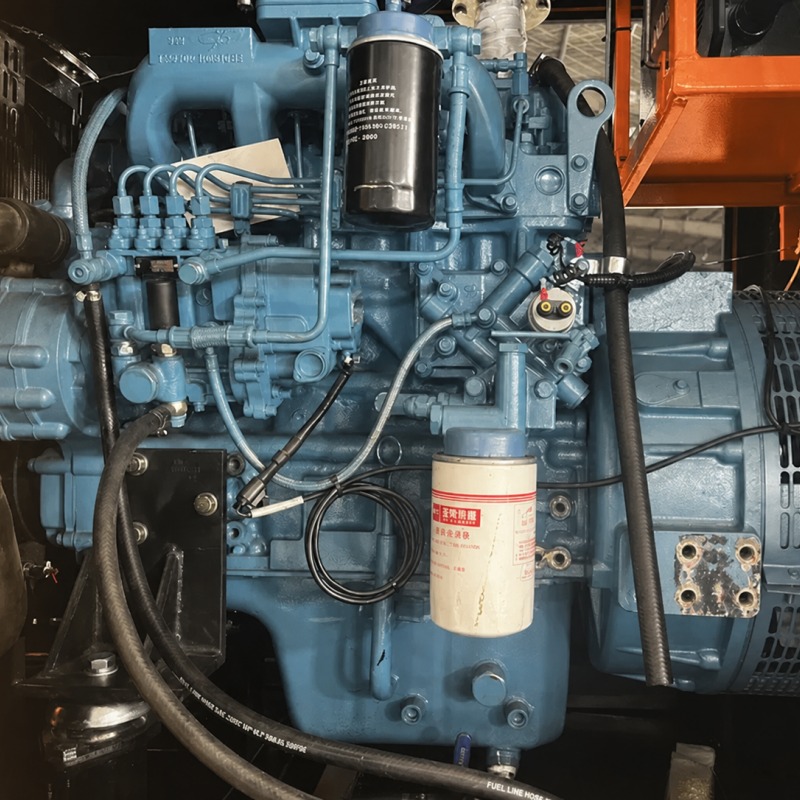

This is a 30kw diesel generator set-based self-powered welding equipment for vehicles, specially designed for harsh outdoor conditions. It is equipped with a professional welding system, perfectly integrating power supply and welding operations as the two core functions. This welding generator diesel engine portable type is powered by a robust Yuchai diesel engine, which ensures stable and all-weather power output and excellent fuel economy under various working conditions. It is integrated into a sturdy trailer chassis and is equipped with four heavy-duty tires capable of handling rough terrains, ensuring that this multi-functional machine can be easily transported to any construction site and easily cope with various complex terrains ranging from rough construction sites to remote wilderness areas.
Air Compressor Specification Table
| DC Welding | Name | Welding generator diesel engine portable |
| Welding mode | Manual welding | |
| No load voltage | DC 70V | |
| The nominal working voltage | DC 32V | |
| Rated welding current | 2*250A or 1*500A | |
| Regulatory limits of the welding current | 50-300 A | |
| Welding electrode type | Acid electrode (J422), alkaline electrode (507), cellulose type electrode (E6010, 8010) | |
| AC Output | Protection grade | IP23 |
| Insulation grade | H | |
| Rated output | 30KW | |
| Rated output Voltage | 400/230V | |
| The frequency | 50HZ | |
| Rated current | 54A (Every phase) | |
| The phase | Three phase | |
| Engine | Engine Name | Diesel engine |
| Type | Direct, four-cylinder, water-cooled, four-stroke diesel engines. | |
| Model and displacement | YUCHAI YC4D60-D25 | |
| The output power | 40KW | |
| Start the way | Electronic speed regulation |
The ZD-30 Portable Diesel Welding Generator is widely used in:
· Oil and gas pipeline construction
· Mining and quarry projects
· Steel structure fabrication
· Bridge and highway construction
· Shipbuilding and ship repair
· Railway maintenance projects
· Construction equipment repair
· Remote industrial job sites
· Agricultural and infrastructure projects
· Emergency repair and maintenance services
Whether operating in remote locations or areas without grid access, the ZD-30 provides reliable welding and power generation in one compact unit.
1.Silent Canopy Design

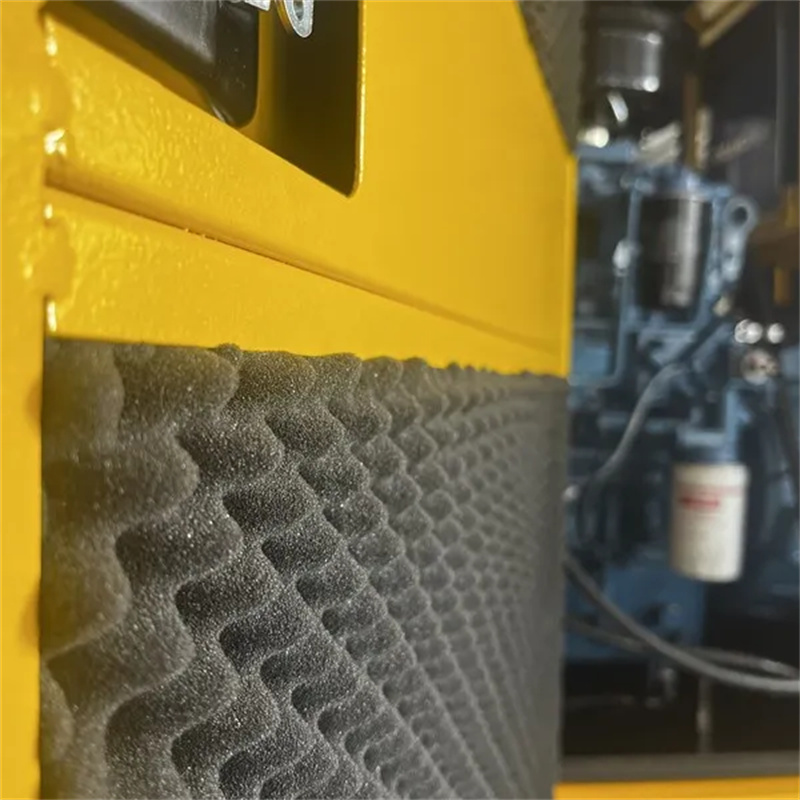

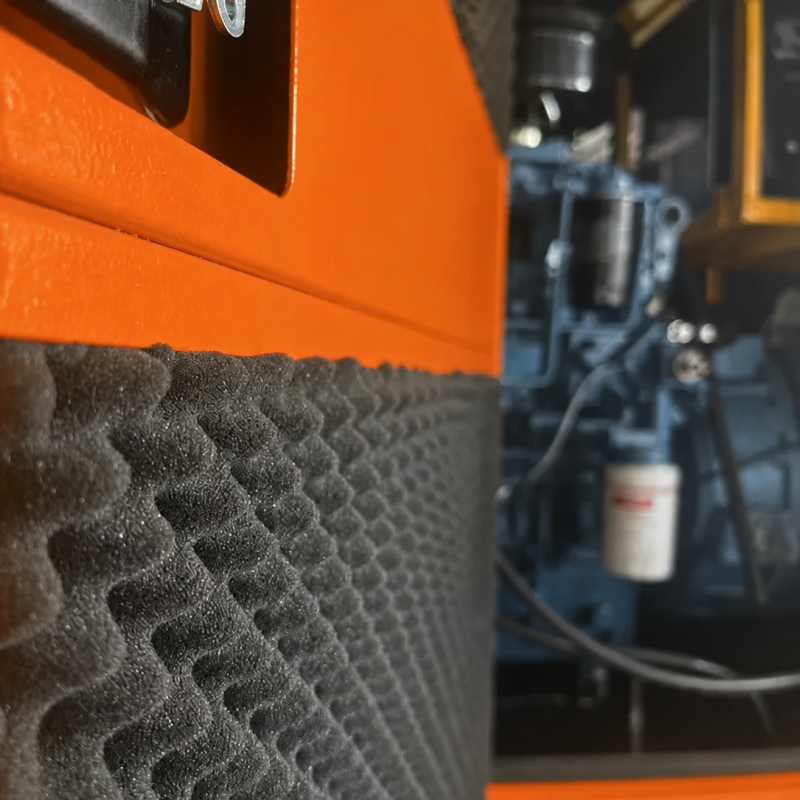

The soundproof enclosure reduces operating noise, making it suitable for urban construction sites and noise-sensitive environments.
2.Excellent Mobility
Portable design allows easy transportation between different job sites, improving equipment utilization and project efficiency.

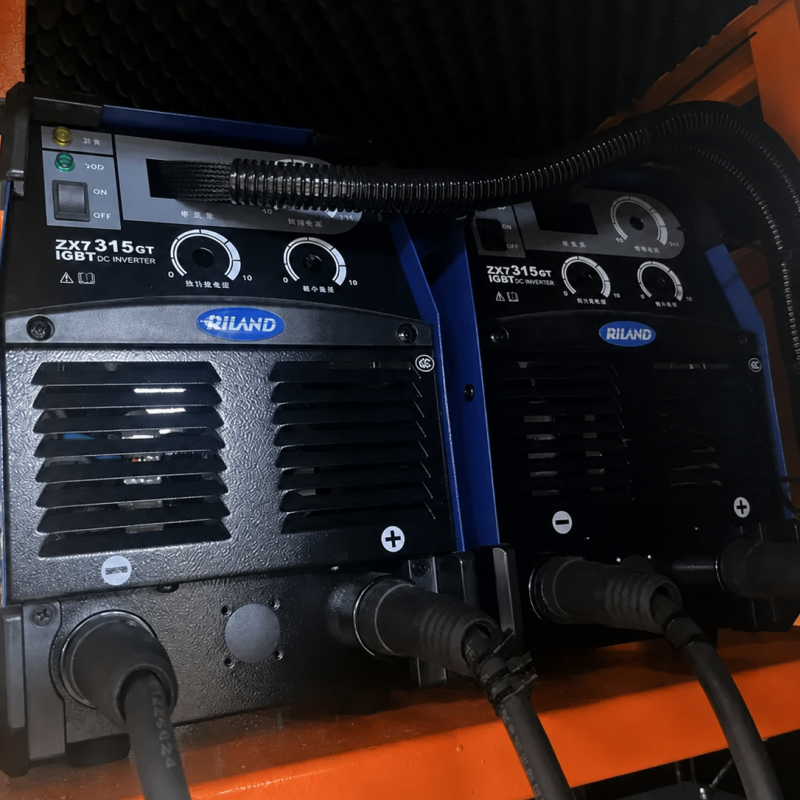

3.Dual Function: Welding and Power Generation

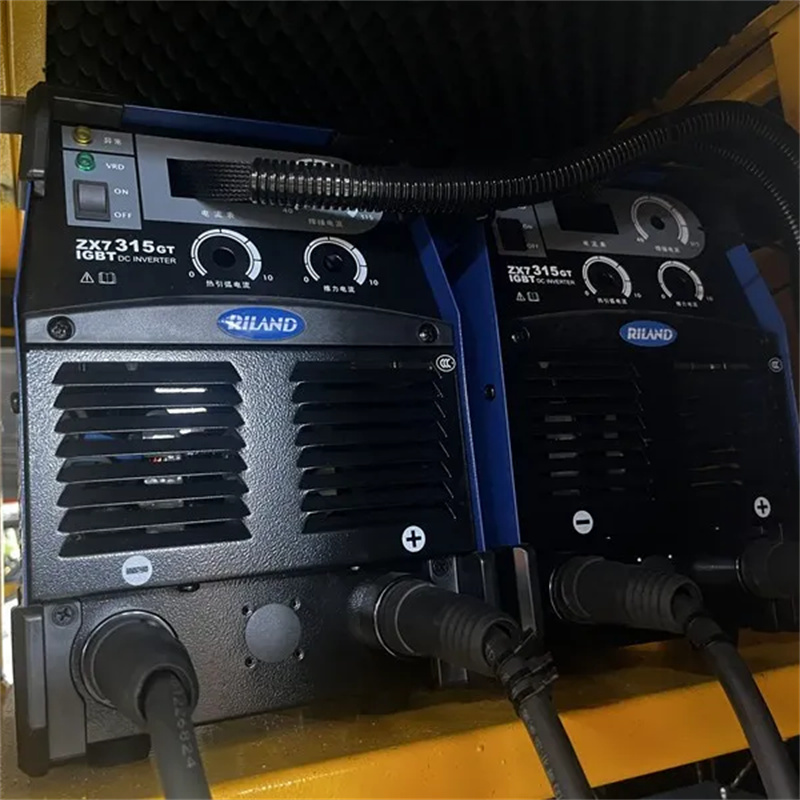

Combines a professional DC welding machine and diesel generator in one unit, reducing equipment investment and transportation costs.
1.Q:What welding applications is the ZD-30 suitable for?
The ZD-30 is suitable for structural steel fabrication, pipeline welding, mining equipment maintenance, bridge construction, shipbuilding, and general industrial welding projects.
2.Q:Which welding electrodes can be used?
A:The machine supports a variety of electrodes, including J422, E5018, E6010, and E8010, making it suitable for both standard fabrication and pipeline welding applications.
3.Q:Is the unit suitable for pipeline construction projects?
A:Yes. The ability to use cellulosic electrodes such as E6010 and E8010 makes it particularly suitable for oil, gas, and water pipeline welding.
4.Q:Can it operate in remote locations without grid power?
A:Absolutely. The diesel engine-driven design allows completely independent operation in remote construction, mining, and maintenance sites
5.Q:What fuel does the generator use?
A:The generator is powered by a YUCHAI diesel engine, providing excellent fuel efficiency and reliable performance in demanding environments.
6.Q:What warranty do you provide?
A:We generally offer a 12-month warranty after commissioning or 18 months after shipment, whichever comes first.
