MCE200 Fully Hydraulic Wireline Core Exploration Drilling Rig – Compact, Powerful & Terrain-Adaptable for 200m+ Coring

The MCE200 Fully Hydraulic Wireline Core Exploration Drilling Rig is a compact yet powerful coring solution engineered for mineral exploration, geotechnical investigation, and slim-hole drilling in challenging terrain. Its small footprint and lightweight design (4.8T) make it exceptionally well-suited for remote, rugged, and confined sites where larger rigs cannot access, while its 76kW Quanchai engine delivers reliable power for demanding drilling conditions.

The fully hydraulic system provides smooth, responsive control across all functions, while the integrated wireline coring capability – featuring 300m rope capacity, 15kN lifting force, and 110m/min hoisting speed – enables efficient core retrieval without tripping the entire drill string, significantly boosting productivity. Designed for easy operation and proven reliability, the MCE200 offers intuitive controls that minimize operator training requirements while maintaining consistent, productive performance even in remote locations.

With 260m BTW, 200m NTW, and 100m HTW drilling capability, 14T lifting force, 6T propulsion force, and 45–90° drilling angle adjustment, the MCE200 delivers exceptional versatility for varied exploration requirements. Featuring rubber tracks for superior maneuverability and minimal ground disturbance, the MCE200 delivers the capability, reliability, and terrain adaptability you need to complete exploration projects efficiently and cost-effectively.

1. Mineral Exploration

Used extensively for core drilling in mineral exploration programs, where the compact design enables access to remote and challenging terrain while delivering reliable core recovery at depths up to 260m BTW.

2. Geotechnical Investigation

Employed in geotechnical site investigations for infrastructure projects, providing accurate subsurface data for foundation design, slope stability analysis, and construction planning.

3. Environmental & Hydrogeological Drilling

Applied in environmental monitoring well installation and hydrogeological investigations where slim-hole coring and minimal site disturbance are essential requirements.

4. Confined-Site & Urban Exploration

The small footprint and rubber track system enable operation in tight urban sites, industrial facilities, and other confined locations where conventional drill rigs cannot be deployed.

5. Remote & Difficult Terrain

The lightweight design and rubber tracks provide superior maneuverability in mountainous, forested, and other challenging terrains, enabling exploration programs in areas with limited access.

1. Compact Footprint with Powerful Coring Performance

Despite its small footprint and lightweight design (4.8T, 5400×1800×2300mm transport dimensions), the MCE200 delivers impressive coring capability with 260m BTW depth and 14T lifting force – proving that size does not compromise performance.

2. Fully Hydraulic System for Smooth Control

The fully hydraulic system provides smooth, responsive control across all drilling functions, enabling precise operation and reducing operator fatigue for consistent productivity throughout long shifts.

3. Integrated Wireline Coring for Maximum Efficiency

The 300m rope capacity, 15kN lifting force, and 110m/min hoisting speed enable efficient wireline core retrieval without tripping the entire drill string – significantly reducing cycle times and boosting overall productivity.

4. Reliable 76kW Quanchai Engine

Powered by a dependable 76kW Quanchai engine, the MCE200 delivers consistent power for demanding exploration drilling, ensuring reliable performance even in remote locations where equipment reliability is critical.

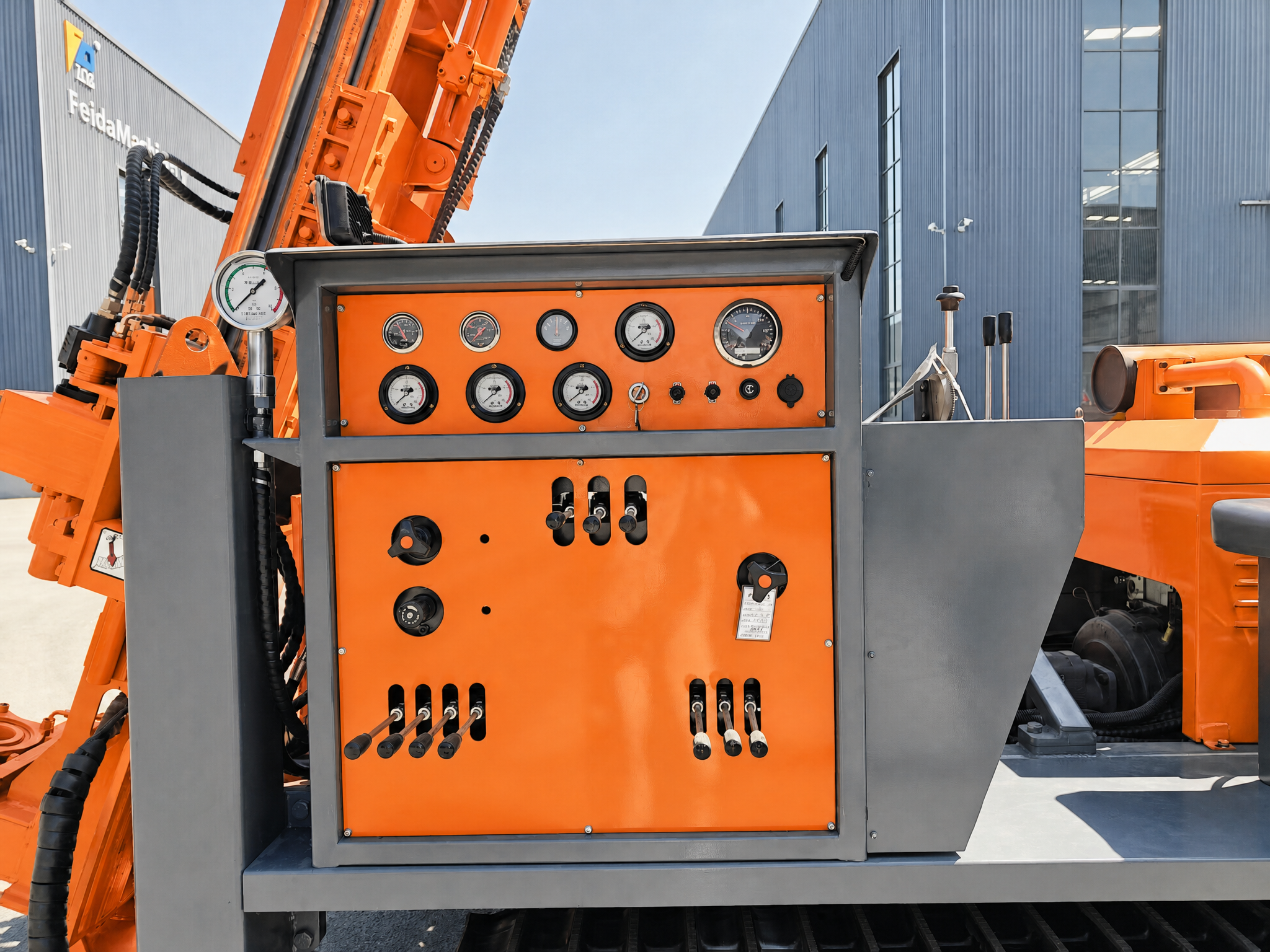

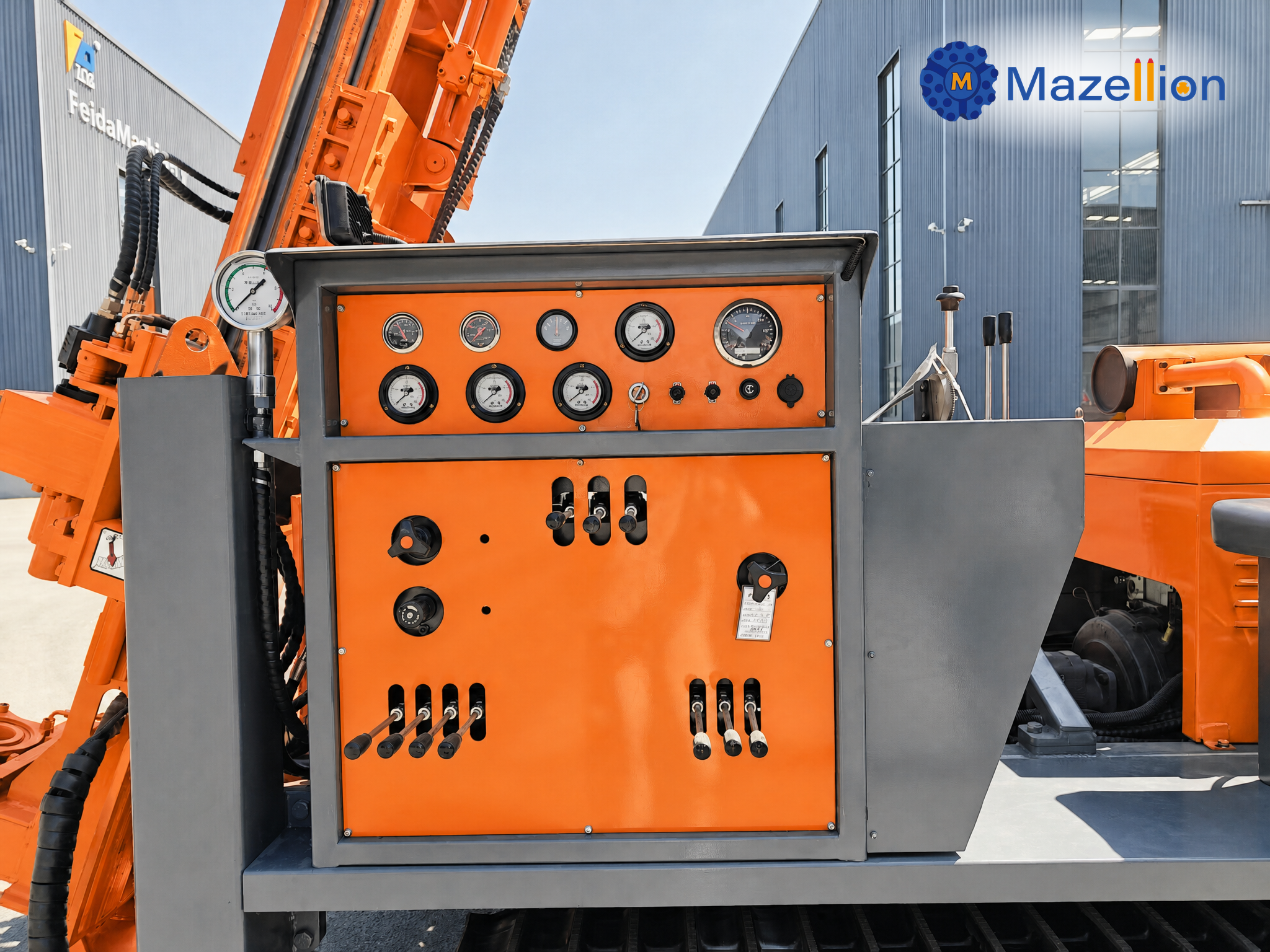

5. Easy Operation with Intuitive Controls

Engineered for straightforward operation with intuitive controls, the MCE200 minimizes training requirements and operator fatigue while enabling crews to achieve consistent, productive drilling cycles with minimal effort.

6. High-Reliability Construction

Built with robust components and proven design principles, the MCE200 ensures dependable operation with minimal downtime – keeping exploration programs on schedule and reducing costly interruptions.

7. Wide Drilling Angle Range

The 45–90° drilling angle adjustment provides exceptional versatility for varied site conditions and exploration requirements, enabling angled holes for targeted subsurface investigation.

8. Rubber Track System for Terrain Adaptability

The rubber track undercarriage delivers excellent maneuverability and minimal ground disturbance, allowing operation in sensitive environments and providing the terrain adaptability required for remote exploration.

9. Compact Transport Dimensions

With transport dimensions of 5400×1800×2300mm, the MCE200 can be easily transported on standard vehicles, reducing mobilization costs and enabling rapid deployment between exploration sites.

Q1: What are the maximum drilling depths for different core sizes?

The MCE200 delivers 260m with BTW, 200m with NTW, and 100m with HTW – select the appropriate core size based on your depth requirements and sample diameter needs.

Q2: What is wireline coring and how does it benefit exploration?

Wireline coring enables core retrieval without tripping the entire drill string – the MCE200's 300m rope capacity, 15kN lifting force, and 110m/min hoisting speed significantly reduce cycle times and boost overall productivity compared to conventional coring methods.

Q3: How does the compact design benefit exploration operations?

The small footprint (4.8T, 5400×1800×2300mm transport dimensions) and rubber track system enable access to remote, rugged, and confined sites where larger rigs cannot operate, while reducing mobilization costs and site disturbance.

Q4: Is the MCE200 suitable for steep terrain?

Yes – the 30° gradeability and rubber track system provide excellent terrain adaptability for operations in mountainous, forested, and challenging terrain conditions.

Q5: What is the drilling angle range?

The carriage provides 45–90° drilling angle adjustment, allowing vertical, angled, and horizontal holes for varied exploration and geotechnical requirements.

Q6: What engine powers the MCE200?

The rig is powered by a reliable 76kW Quanchai engine, delivering consistent performance for demanding exploration drilling in remote locations.

Q7: What are the shipping methods and delivery lead times?

We offer sea freight (20–30 days), air freight (5–7 days), and express courier (3–5 days), with standard production taking 15–20 working days – exact delivery schedules are confirmed upon order placement.

Q8: What after-sales service and technical support do you provide?

We provide a 12-month warranty against manufacturing defects, free remote technical support via phone, email, or video call, and on-site assistance upon request (travel costs apply) – maintenance manuals and genuine spare parts are also available for long-term support.

Q9: What payment methods do you accept?

We accept T/T (30% deposit + 70% before shipment), L/C at sight or usance, Western Union, and PayPal for samples, with Alibaba Trade Assurance also available – terms can be negotiated based on order volume and credit history.
