When heavy machinery crosses oceans, the journey is fraught with perils—rolling waves, salty air, shifting container loads, and relentless vibration. Even a minor scratch or a millimetre of displacement can compromise the precision of a hydraulic anchor drilling rig, leading to costly recalibration or premature failure at the job site. At Quzhou Mazellion Heavy Industry Technology Co., Ltd., we understand that our responsibility does not end at the factory gate; it extends all the way to the moment our equipment is unpacked and put to work. That is why we have developed a meticulous three‑layer protection system, specifically engineered for each hydraulic anchor drilling rig, to ensure it arrives in the same pristine condition as when it left our assembly line.

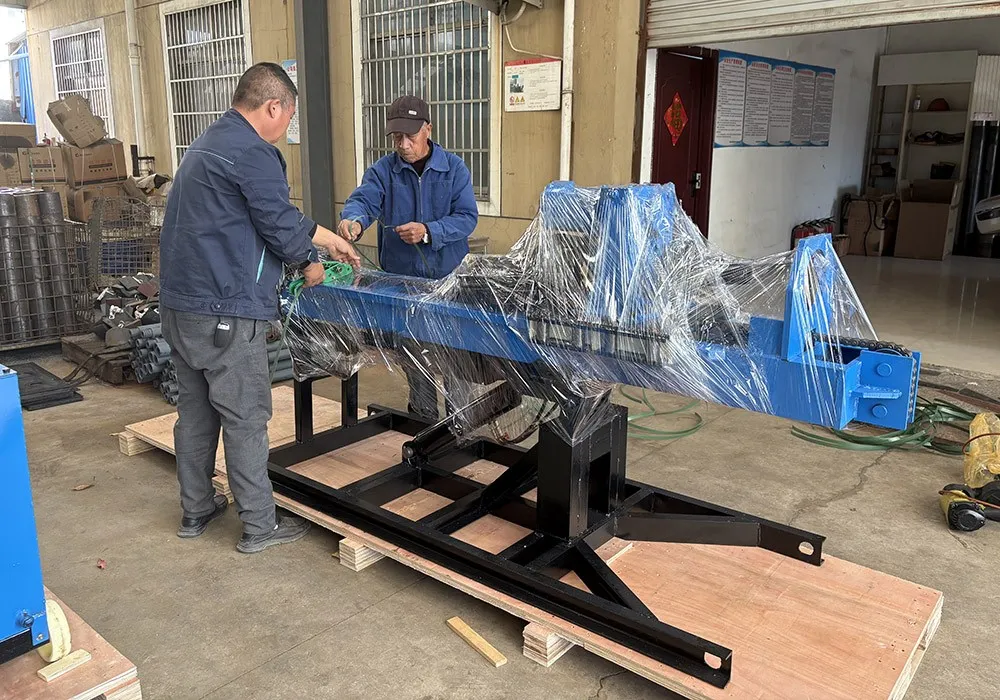

The first line of defence begins with an industrial‑grade polyethylene film, applied directly onto the main body of every drilling rig. This transparent “protective suit” is no ordinary shrink wrap. It is a high‑strength, UV‑resistant, and anti‑static material, with a thickness of 150 microns, specially chosen to withstand the harsh marine environment. During weeks of ocean transit, salt‑laden fog and fluctuating humidity can corrode exposed hydraulic cylinders, electronic sensors, and precision valve blocks. Our film creates an impermeable barrier, effectively blocking moisture and salt spray from reaching any critical component. Moreover, it guards against the abrasive dust that often accumulates in container yards and the minor impacts from handling during transhipment. Even the most delicate painted surfaces and machined mating faces remain unharmed. This layer is carefully applied by trained operators who ensure every corner, hose, and fitting is fully covered, leaving no gap for contaminants to sneak in. The film also provides a visual check—any tear or puncture would be immediately visible, allowing for quick repair before the container is sealed.
While surface protection preserves the exterior, the real challenge lies in immobilising the equipment itself. Our hydraulic anchor drilling rig is mounted on a wheeled chassis, designed for mobility on construction sites. But mobility is a liability during shipping; even a slight shift of the wheels can cause the entire rig to list, stressing suspension components and risking collision with container walls. To counter this, our packaging team employs a time‑tested yet highly effective method: custom‑machined hardwood chocks.

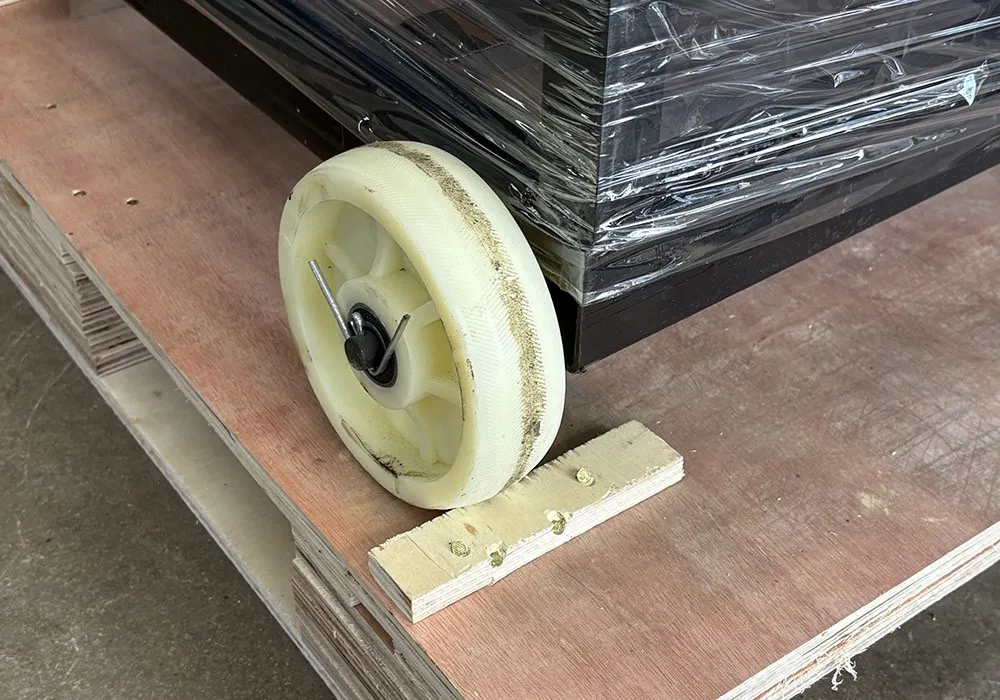

Each chock is precision‑cut to fit the exact curvature and width of every tyre, creating a snug, wedge‑shaped cradle. These chocks are then driven into position against the tyres and securely fastened with heavy‑duty engineering nails—not ordinary nails, but galvanised spiral shank nails that resist loosening under vibration. Four chocks per wheel (two in front, two behind) are cross‑braced with timber battens, effectively locking the wheels in a fixed orientation. This traditional technique, when combined with modern load‑binding straps, eliminates any possibility of fore‑aft or lateral displacement. We also place anti‑skid mats between the tyres and the container floor, further increasing friction. The result is that even under extreme rolling motions (up to 30° of heel), the rig remains “as steady as a rock” inside its steel home. We have tested this fixation method on simulated ship motion platforms, and it has consistently passed both acceleration and deceleration shock tests, giving us—and our customers—complete peace of mind.

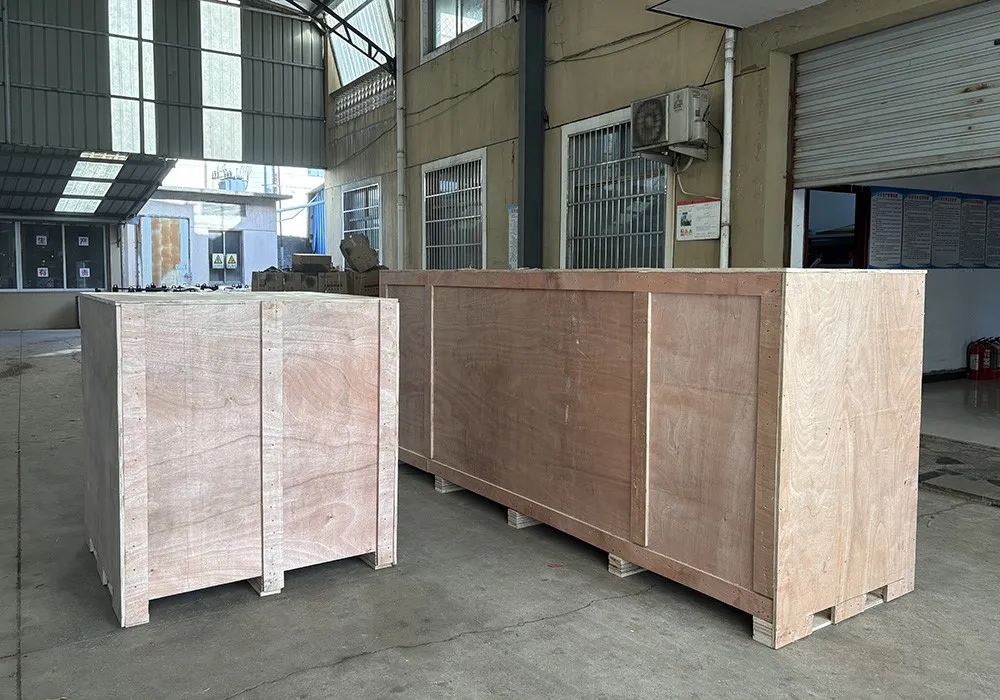

With the inner protection and fixation complete, the rig is then placed into a specially engineered reinforced wooden crate. This is not a standard export box; it is a custom‑designed enclosure built from high‑density plywood and structural lumber, with a minimum wall thickness of 18 mm and reinforced corner brackets made of galvanised steel. The interior of the crate features an exclusive support frame that precisely matches the contours of the drilling rig—including dedicated cut‑outs for the boom, the feed rail, and the hydraulic power pack. This frame not only provides vertical and lateral bracing but also distributes the equipment’s weight evenly across the pallet base, preventing point loading that could deform the chassis. To further absorb shock, we line the contact surfaces with 10‑mm thick closed‑cell rubber pads, which dampen high‑frequency vibrations that might otherwise loosen bolts or fittings.
The exterior of the wooden box is clearly marked with internationally recognised handling and warning symbols: the umbrella for “keep dry,” the arrows indicating centre of gravity, the hooks showing designated lifting points, and weight labels in both kilograms and pounds. We also affix a tilt‑indicator and a shock‑watch label, so that logistics handlers and receivers can instantly see if the crate has been mishandled during transit. Every nail and screw is countersunk to avoid snagging, and all sharp edges are protected with cardboard edging to safeguard loading crews. This crate is not merely a container—it is a mobile warehouse, engineered to withstand stacking loads of up to 10 tonnes and to resist punctures from forklift tines.
Once the three‑layer protection is complete, the loading phase begins—and this is where our professional expertise truly shines. Our experienced operations team, each member with over five years of heavy machinery logistics experience, coordinates the entire process using precision forklifts and overhead cranes. The crate is carefully lifted, rotated, and slid into the standard 40‑foot high‑cube container. But we do not stop at simply pushing the box inside. Inside the container, we implement a scientifically designed multi‑point positioning and lashing plan. Heavy‑duty steel tracks are bolted to the container floor, and we use a combination of dedicated twist‑lock devices, ratchet straps, and timber wedges to anchor the crate securely. We even place inflatable dunnage bags between the crate and the container walls—these bags are inflated to a specific pressure, expanding to fill any voids and absorbing lateral impacts. After every strap is tightened and every wedge driven home, we perform a final shake test by physically rocking the container with a forklift; if the crate moves even a millimetre, we re‑adjust until it is absolutely immobile. Only then is the container door closed and sealed with a high‑security bolt seal. The entire loading process is documented with photographs and a pre‑shipment checklist, which we share with the customer as proof of our diligence.
With the container sealed, our hydraulic anchor drilling rig is now fully prepared for its transoceanic voyage. It will travel thousands of nautical miles, crossing equatorial heat and stormy seas, before arriving at the project site—likely a challenging infrastructure development in a remote region. We have full confidence that this rig, with its superior geological adaptability, high‑frequency percussive power, and efficient drilling performance, will prove to be a reliable workhorse for our client. Its robust protection system ensures that the moment it is unpacked, it can be fuelled, checked, and put to work within hours—no unexpected repairs, no hidden damage, no delay.
At Quzhou Mazellion Heavy Industry Technology Co., Ltd., we believe that quality is not only about what we build, but also about how we deliver. From precision manufacturing to professional protection, from thoughtful packaging to safe delivery, we maintain an unwavering attitude of responsibility toward every product and every customer. The equipment has set sail, but our service remains online—our after‑sales team is already preparing on‑site training materials, spare parts kits, and remote diagnostic support, ready to assist at the first call. We eagerly look forward to seeing our equipment demonstrate outstanding value on construction sites all over the world, earning the trust of more partners through tangible performance and unwavering reliability. After all, a rig that arrives safely is the first step toward a project that finishes successfully—and that is the promise we keep, shipment after shipment.
