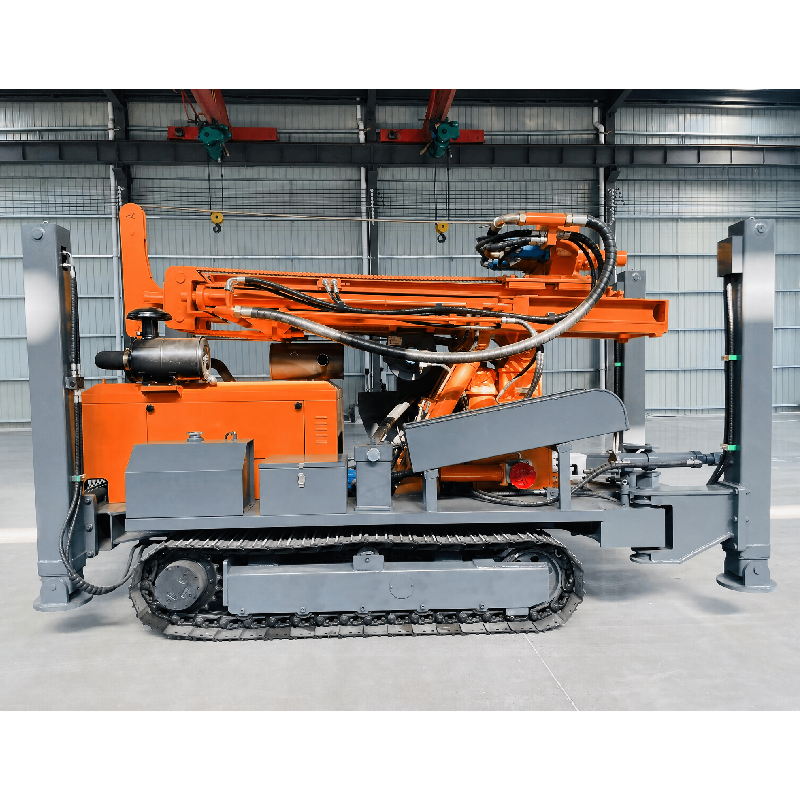

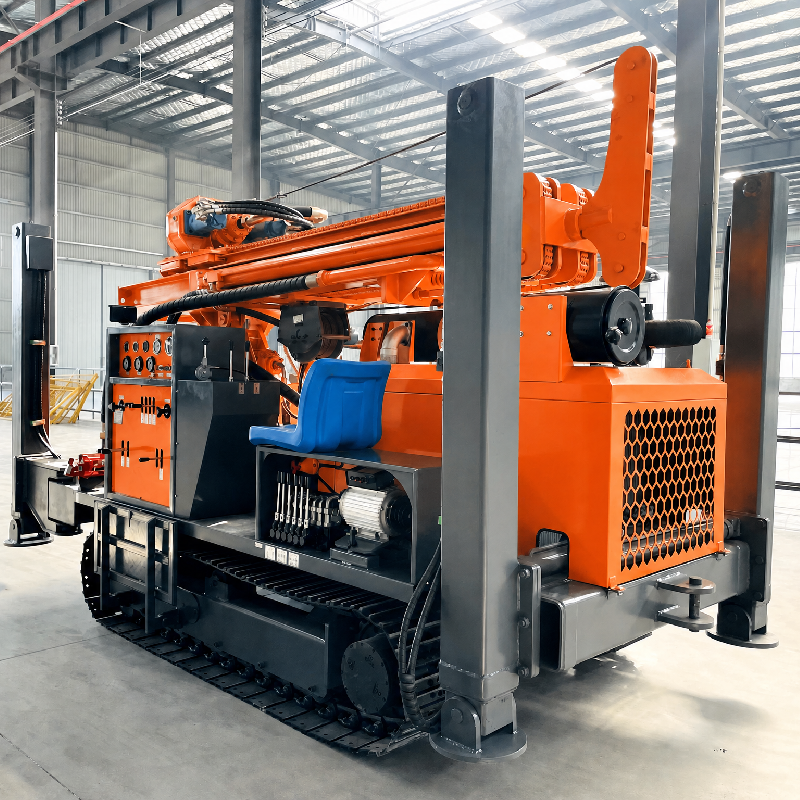

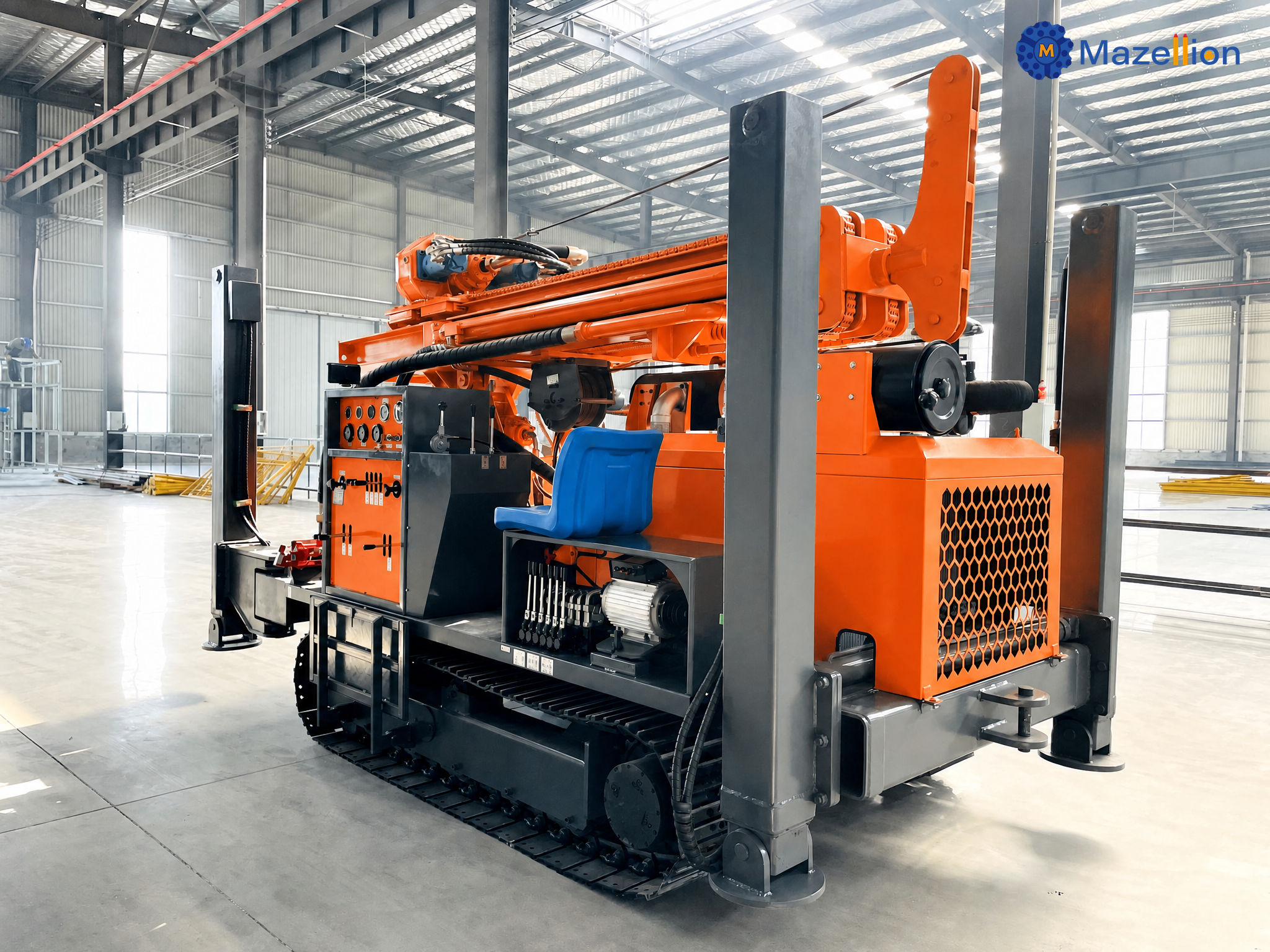

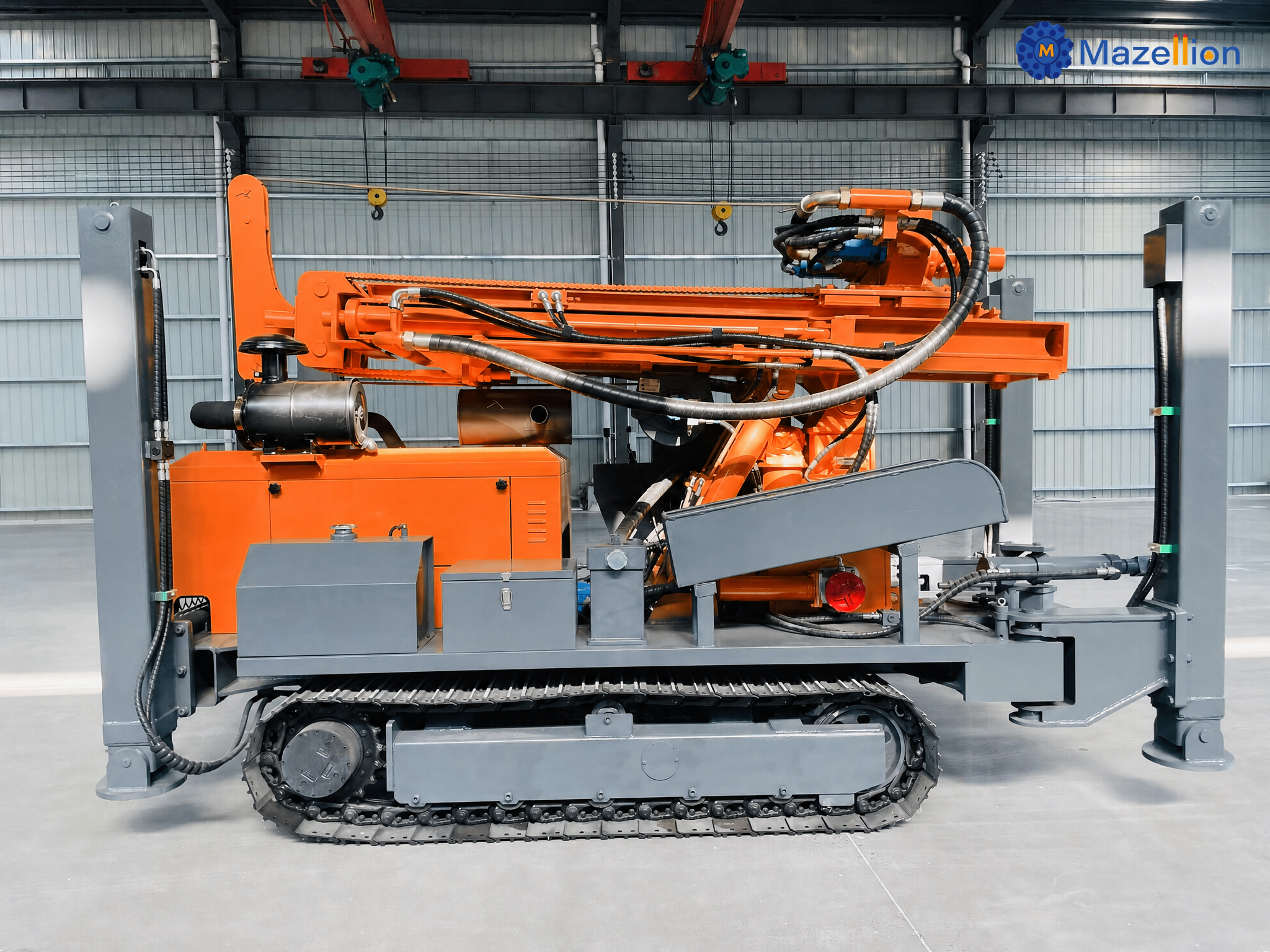

KC300 Fully Hydraulic Water Well Drilling Rig – High-Torque Deep Drilling Solution with Rapid Water-Air Switching (300m Depth)

The KC300 Fully Hydraulic Water Well Drilling Rig is a high-performance deep drilling solution engineered for contractors who need maximum power and efficiency in large-scale water well, geothermal, and infrastructure projects. Equipped with the highest-capacity hydraulic motor in its class, the KC300 delivers exceptional driving force that significantly boosts working efficiency and penetration rates in demanding formations.

A key differentiator of the KC300 is its rapid water-air switching valve, enabling instant, seamless transition between mud and air drilling media based on real-time formation conditions. This precision control system ensures smoother, more accurate drilling with optimal speed and force management, reducing bit wear and improving overall hole quality.

The KC300 is available in two configurations to match your specific operational requirements:

● KC300A: Compact and maneuverable, featuring a 3.3m one-time advance length and standard 1.5–3.0m drill pipe options – ideal for projects requiring frequent relocation and efficient transport.

● KC300B: Extended reach and productivity, featuring a 6.6m one-time advance length, support for 6.0m drill pipes, and compatibility with Φ102 drill pipe for larger-diameter operations – significantly reducing pipe handling time and boosting single-shift footage.

Both models are powered by a reliable 85kW Yuchai engine, delivering ample power for the most demanding drilling conditions. The rigs come standard with a mud pump for conventional water drilling and can be factory-configured for dual-purpose water-air operation, enabling seamless transition to DTH hammer drilling for rapid hard rock penetration. With 300m maximum drilling depth, 140–325mm hole diameter range, and swing torque of 5700–7500 N·m, the KC300 handles the deepest and largest-diameter projects with ease – delivering the capability, durability, and precision you need to complete large-scale jobs efficiently and profitably.

1. Deep Water Well Construction

With 300m maximum drilling depth, the KC300 handles the deepest municipal, agricultural, and industrial water wells, accessing groundwater resources that standard rigs cannot reach.

2. Large-Diameter Geothermal Systems

The 140–325mm hole diameter range accommodates large-scale commercial and institutional geothermal borehole fields, delivering the precision and efficiency required for array drilling.

3. Heavy Infrastructure & Foundation Piling

Applied in bridge foundations, high-rise building piling, and heavy infrastructure projects where the 5700–7500 N·m swing torque and 18T lifting force deliver reliable performance in demanding conditions.

4. Exploration & Deep Geotechnical Drilling

Employed in mineral exploration and deep geotechnical investigation programs requiring deep penetration, reliable core recovery, and adaptability across varied formations.

5. Hard Rock & Challenging Formations

The rapid water-air switching capability and high torque output enable efficient drilling through hard rock, fractured formations, and other challenging geological conditions.

1. Maximum-Power Hydraulic Motor for Superior Efficiency

The KC300 is equipped with the highest-capacity hydraulic motor in its class, delivering exceptional driving force that significantly boosts working efficiency and penetration rates, enabling faster project completion and reduced operating costs.

2. Rapid Water-Air Switching Valve for Precision Control

The quick-change water-air valve enables instant, seamless transition between mud and air drilling media based on real-time formation conditions – ensuring smoother, more accurate drilling with optimal speed and force management while reducing bit wear.

3. Powerful 85kW Yuchai Engine

Powered by a reliable 85kW Yuchai engine, the KC300 delivers consistent, robust output for the most demanding deep drilling operations, ensuring productive performance even in remote locations.

4. Two Configurations for Tailored Performance

Choose KC300A for compact maneuverability and frequent relocation, or KC300B for extended reach with 6.6m advance length, 6.0m pipe support, and Φ102 compatibility – the B model significantly reduces pipe handling time and boosts single-shift footage.

5. High Torque for Demanding Formations

Delivering swing torque of 5700–7500 N·m, the KC300 provides exceptional rotational power for efficient penetration in hard rock and challenging formations, maximizing drilling speed while minimizing bit wear.

6. Extended 300m Depth & Large Diameter Capability

With 300m maximum drilling depth and 140–325mm hole diameter range, the KC300 handles the deepest and largest-diameter projects in its class, expanding your operational capabilities for premium large-scale contracts.

7. Factory-Configurable Dual-Purpose Water-Air Operation

The KC300 comes standard with a mud pump for conventional water drilling and can be factory-configured for dual-purpose water-air operation, enabling seamless transition to DTH hammer drilling for rapid hard rock penetration with full system integration and warranty coverage.

8.Integrated Auxiliary Features for Enhanced Field Performance

Equipped with an integrated winch system, the drilling rig simplifies drill pipe handling, tool lifting, and maintenance operations, reducing manual workload and improving working efficiency. The built-in welding machine provides convenient on-site repair and welding capability, minimizing downtime during field operations.

Q1: What is the difference between KC300A and KC300B?

The KC300A is the compact version with 3.3m advance length, 1.5–3.0m pipe options, and 4100mm length for frequent relocation, while the KC300B features extended 6.6m advance length, supports 6.0m pipes and Φ102 diameter, and measures 5900mm – the B model significantly reduces pipe handling time for maximum single-shift productivity.

Q2: What is the maximum drilling depth and hole diameter?

Both models deliver 300m maximum drilling depth with hole diameters ranging from 140–325mm, handling the deepest and largest-diameter projects in this class.

Q3: What is the rapid water-air switching valve and how does it benefit drilling?

The quick-change valve enables instant, seamless transition between mud and air drilling media based on real-time formation conditions – ensuring smoother, more accurate drilling with optimal speed and force management while reducing bit wear and improving hole quality.

Q4: Does the KC300 support both water and air drilling?

Yes – the rig comes standard with a mud pump for conventional water drilling and can be factory-configured for dual-purpose water-air operation, enabling seamless transition to DTH hammer drilling for rapid hard rock penetration.

Q5: What is the swing torque and how does it benefit drilling?

The KC300 delivers swing torque of 5700–7500 N·m, providing exceptional rotational power for efficient penetration in hard rock and challenging formations while maximizing drilling speed and minimizing bit wear.

Q6: What engine powers the KC300?

Both models are powered by a reliable 85kW Yuchai engine delivering consistent, robust output for demanding deep drilling operations.

Q7: Which model should I choose for my project?

Choose KC300A if you prioritize compact size and frequent relocation on smaller sites, or KC300B if you need maximum productivity with longer advance, 6.0m pipes, and Φ102 capability for large-diameter deep holes.

Q8: What are the shipping methods and delivery lead times?

We offer sea freight (20–30 days), air freight (5–7 days), and express courier (3–5 days), with standard production taking 15–20 working days – exact delivery schedules are confirmed upon order placement.

Q9: What after-sales service and technical support do you provide?

We provide a 12-month warranty against manufacturing defects, free remote technical support via phone, email, or video call, and on-site assistance upon request (travel costs apply) – maintenance manuals and genuine spare parts are also available for long-term support.

Q10: What payment methods do you accept?

We accept T/T (30% deposit + 70% before shipment), L/C at sight or usance, Western Union, and PayPal for samples, with Alibaba Trade Assurance also available – terms can be negotiated based on order volume and credit history.
