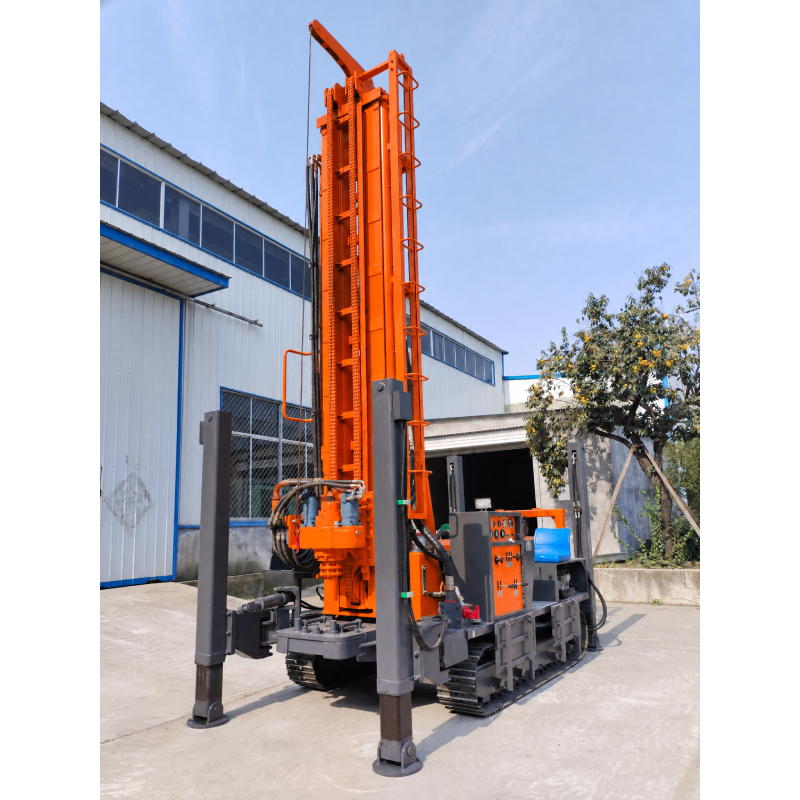

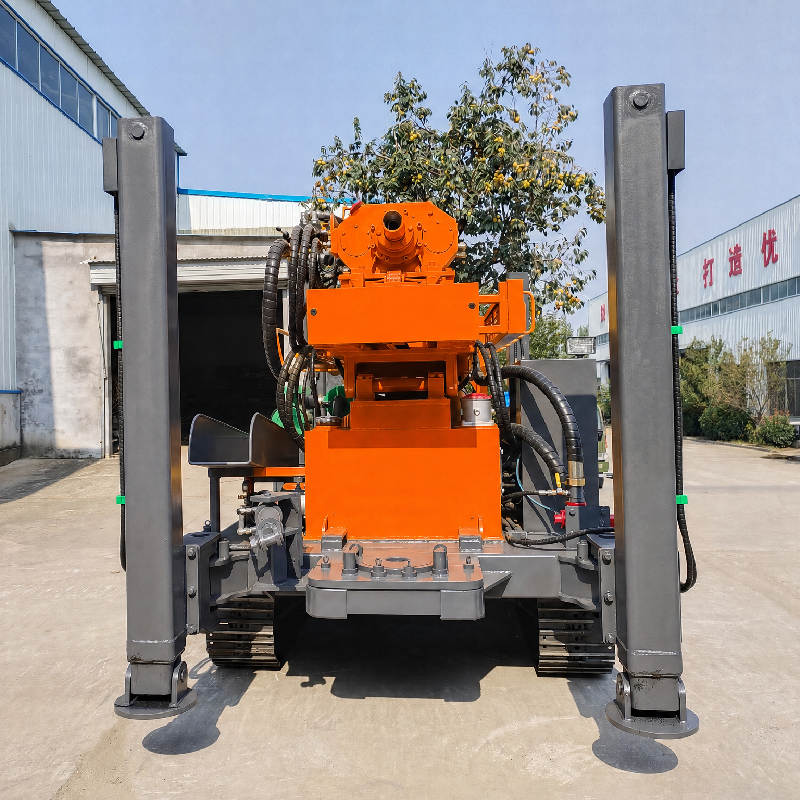

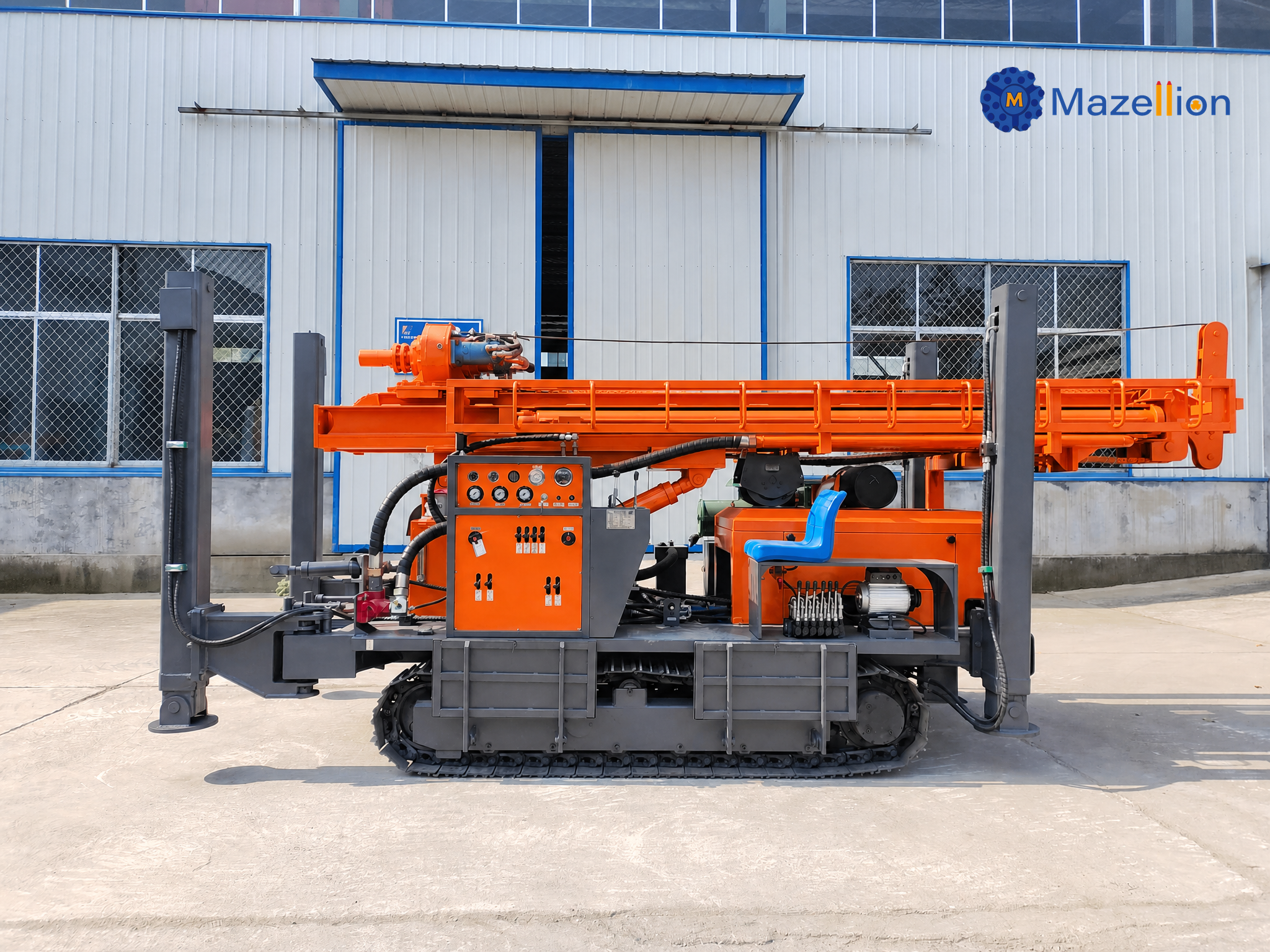

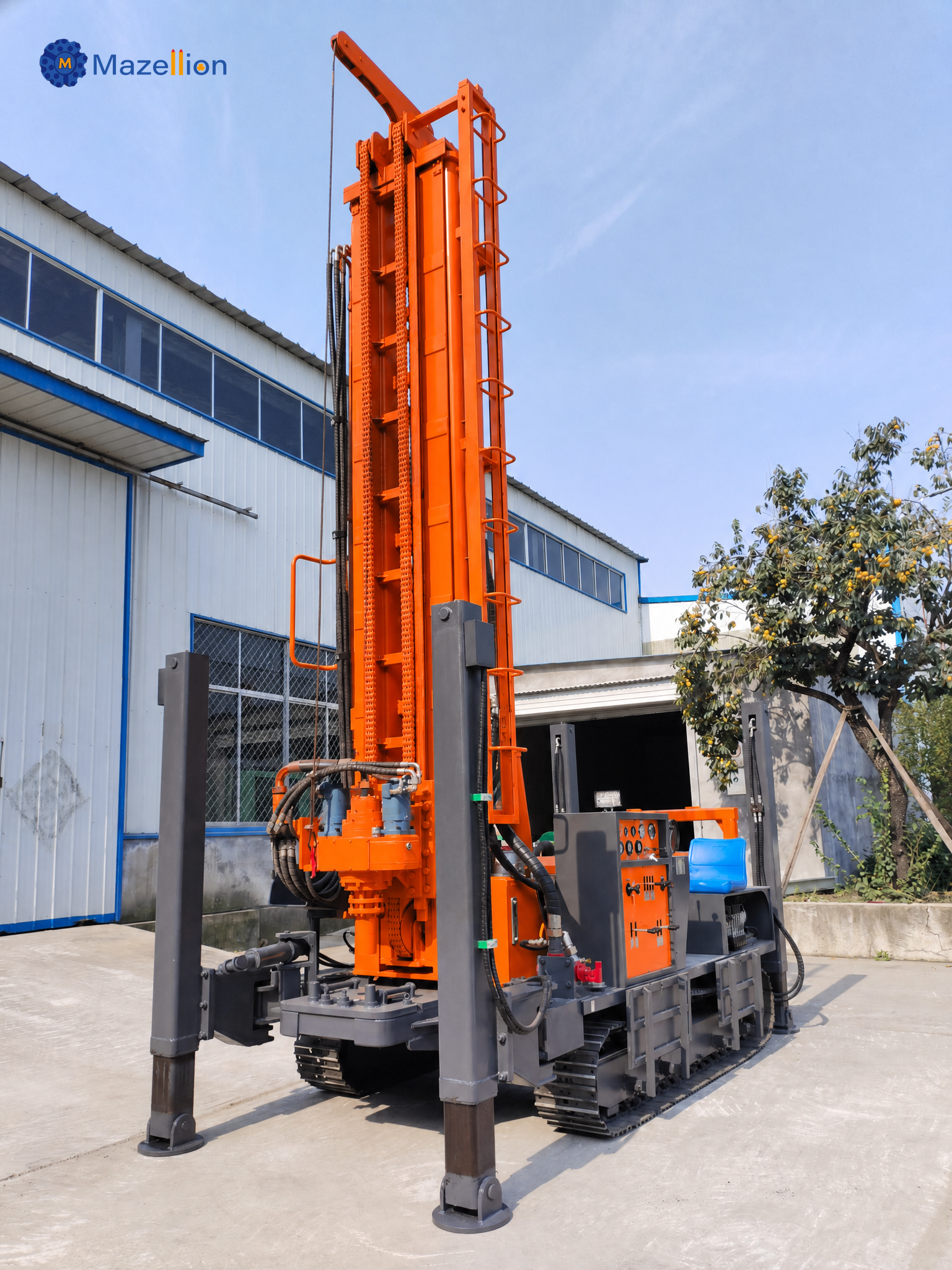

KC450 Fully Hydraulic Water Well Drilling Rig – High-Power Deep Drilling with Foam Pump for Complex Formation Efficiency (450m Depth)

The KC450 Fully Hydraulic Water Well Drilling Rig is a high-capacity deep drilling solution engineered for large-scale water well, geothermal, and infrastructure projects demanding exceptional power and formation adaptability. Powered by a 110kW Yuchai engine, the KC450 delivers abundant, reliable power that ensures high efficiency and stability throughout the drilling process, enabling rapid completion of deep boreholes while maintaining consistent performance in the most demanding conditions.

A key differentiator of the KC450 is its integrated foam pump system, which injects foaming agent into the drilling fluid to reduce friction, protect downhole tools, and optimize cuttings removal. This foam-assisted drilling technology significantly improves penetration efficiency in complex formations – including loose strata, fractured rock, and water-sensitive clays – where conventional mud circulation may encounter challenges, ensuring smooth project progress even in the most difficult geological conditions.

With 450m maximum drilling depth, 140–350mm hole diameter range, swing torque of 7000–9500 N·m, and a 6.6m one-time advance length, the KC450 is purpose-built for serious deep drilling operations. The rig supports Φ89 and Φ102 drill pipes with 6.0m length options, while the 25T lifting force provides ample capacity for deep-hole pipe handling. Built on a durable steel track undercarriage with a 1.6m high leg stroke for superior stability on uneven terrain, the KC450 delivers the capability, durability, and advanced formation management you need to take on the largest, most challenging deep drilling projects with confidence.

1. Deep Municipal & Industrial Water Wells

With 450m maximum drilling depth, the KC450 accesses deep groundwater resources for municipal water supply, industrial processing, and large-scale agricultural irrigation projects requiring maximum depth capability.

2. Large-Scale Geothermal Fields

The 140–350mm hole diameter range and foam-assisted drilling capability accommodate large commercial and institutional geothermal borehole arrays in complex formations, delivering the efficiency and hole quality required for dense, high-volume drilling programs.

3. Heavy Foundation Piling & Infrastructure

Applied in bridge foundations, high-rise building piling, dam construction, and heavy infrastructure projects where the 7000–9500 N·m swing torque and 25T lifting force deliver reliable performance in demanding conditions.

4. Deep Exploration & Geotechnical Drilling

Employed in mineral exploration and deep geotechnical investigation programs requiring maximum depth penetration, reliable core recovery, and adaptability across varied and challenging formations.

5. Complex Geological Formations

The foam pump system enables efficient drilling through loose strata, fractured rock, water-sensitive clays, and other challenging formations where conventional mud circulation may encounter difficulties.

1.Premium Configuration for Maximum Drilling Efficiency

Powered by a 110kW Yuchai diesel engine, the rig delivers strong, reliable performance for demanding drilling applications. It is equipped with an integrated winch for efficient pipe handling, a built-in welding machine for quick on-site repairs, and an access ladder for safe and convenient maintenance. The 6.6 m single-stroke feed system reduces rod-changing frequency, significantly improving drilling efficiency. A dual-purpose quick-change valve enables fast switching between mud and air drilling, while the foam pump enhances drilling performance in unstable formations by improving hole cleaning and reducing dust.

2. Integrated Foam Pump for Complex Formation Efficiency

The foam pump system injects foaming agent into the drilling fluid to reduce friction, protect downhole tools, and optimize cuttings removal – significantly improving penetration efficiency in loose strata, fractured rock, and water-sensitive clays where conventional mud circulation may encounter challenges.

3. Extended 450m Depth Capability

With 450m maximum drilling depth, the KC450 handles the deepest water well and exploration projects in its class, accessing groundwater resources and geological data that standard rigs cannot reach.

4. High Torque for Demanding Formations

Delivering swing torque of 7000–9500 N·m with swing speeds of 30–135 rpm, the KC450 provides exceptional rotational power and speed flexibility for efficient penetration across varied formations, maximizing drilling speed while minimizing bit wear.

5. Large Diameter Pipe Compatibility with Extended Advance

Supporting Φ89 and Φ102 drill pipes with 6.0m length options and 6.6m one-time advance length, the KC450 accommodates large-diameter deep hole operations while significantly reducing pipe handling time and boosting single-shift footage.

6. Heavy-Duty Lifting Capacity

With 25T lifting force, the KC450 provides ample capacity for the deepest hole operations, ensuring reliable pipe handling and reducing cycle time for deep drilling projects.

7. Enhanced Stability with Extended High Leg Stroke

The 1.6m high leg stroke provides superior stability on uneven terrain, ensuring precise hole placement and consistent drilling performance in challenging job site conditions.

8. Factory-Configurable Dual-Purpose Water-Air Operation

The KC450 comes standard with a mud pump for conventional water drilling and can be factory-configured for dual-purpose water-air operation, enabling seamless transition to DTH hammer drilling for rapid hard rock penetration with full system integration and warranty coverage.

Q1: What is the maximum drilling depth and hole diameter?

The KC450 delivers 450m maximum drilling depth with hole diameters ranging from 140–350mm, handling the deepest projects in its class for municipal, industrial, and exploration applications.

Q2: What is the foam pump and how does it benefit drilling?

The foam pump injects foaming agent into the drilling fluid to reduce friction, protect downhole tools, and optimize cuttings removal – significantly improving penetration efficiency in loose strata, fractured rock, and water-sensitive clays where conventional mud circulation may encounter challenges.

Q3: What drill pipe sizes are supported?

The rig supports Φ89 and Φ102 drill pipes with 1.5m, 2.0m, 3.0m, and 6.0m length options – Φ89 is recommended for 140–200mm holes and Φ102 for 200–350mm holes.

Q4: What is the swing torque and speed range?

The KC450 delivers swing torque of 7000–9500 N·m with swing speeds of 30–135 rpm, providing exceptional rotational power and speed flexibility for efficient penetration across varied formations.

Q5: What engine powers the KC450?

The rig is powered by a powerful 110kW Yuchai engine delivering abundant, reliable power for the most demanding deep drilling operations.

Q6: Does the KC450 support both water and air drilling?

Yes – the rig comes standard with a mud pump for conventional water drilling and can be factory-configured for dual-purpose water-air operation, enabling seamless transition to DTH hammer drilling for rapid hard rock penetration.

Q7: What is the lifting force and why is it important?

With 25T lifting force, the KC450 provides ample capacity for the deepest hole operations, ensuring reliable pipe handling and reducing cycle time for deep drilling projects.

Q8: What is the high leg stroke and how does it benefit operation?

The 1.6m high leg stroke provides superior stability on uneven terrain, ensuring precise hole placement and consistent drilling performance in challenging job site conditions.

Q9: What are the shipping methods and delivery lead times?

We offer sea freight (20–30 days), air freight (5–7 days), and express courier (3–5 days), with standard production taking 15–20 working days – exact delivery schedules are confirmed upon order placement.

Q10: What after-sales service and technical support do you provide?

We provide a 12-month warranty against manufacturing defects, free remote technical support via phone, email, or video call, and on-site assistance upon request (travel costs apply) – maintenance manuals and genuine spare parts are also available for long-term support.

Q11: What payment methods do you accept?

We accept T/T (30% deposit + 70% before shipment), L/C at sight or usance, Western Union, and PayPal for samples, with Alibaba Trade Assurance also available – terms can be negotiated based on order volume and credit history.
